10220-55G3VC - 3M

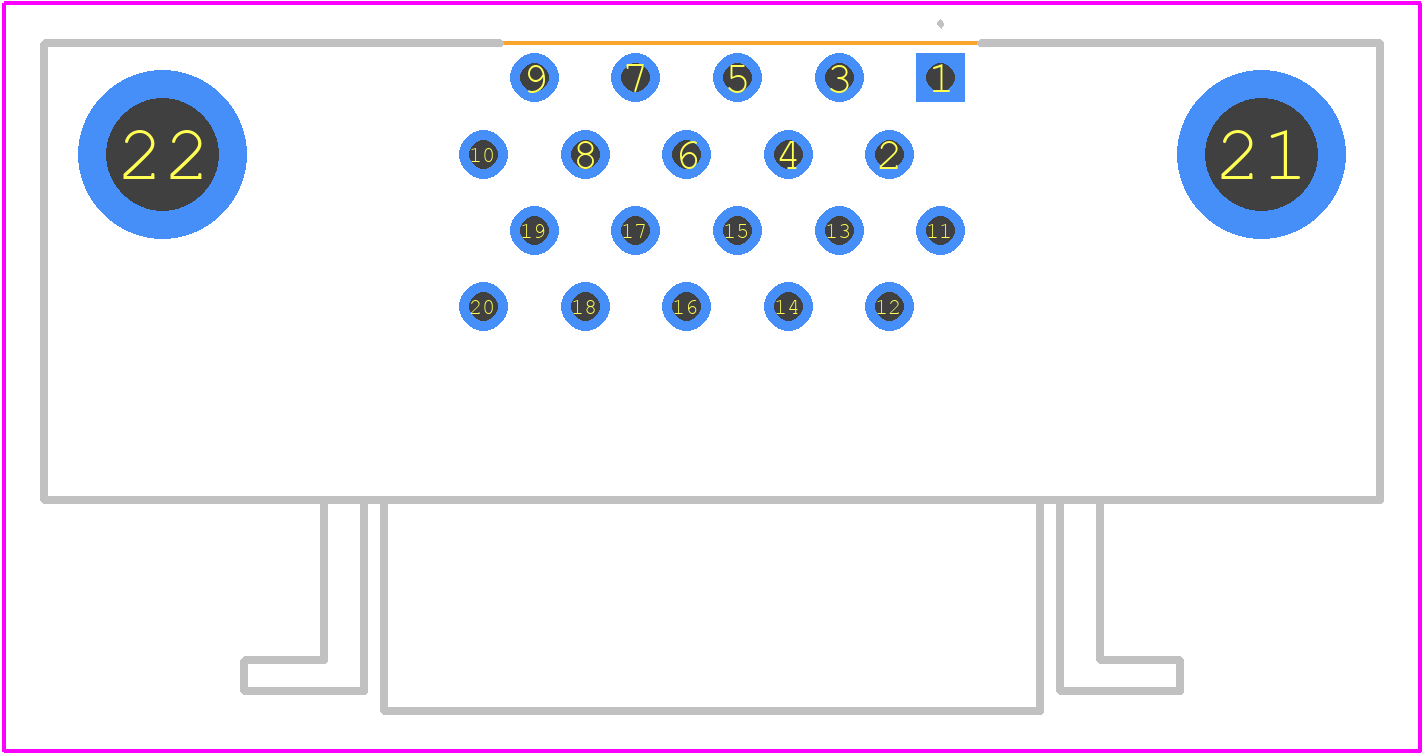

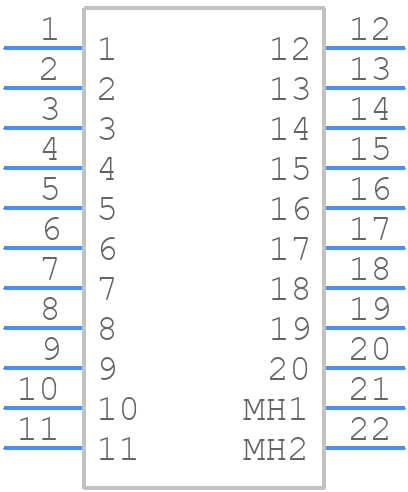

10220-55G3VC Details

• Manufacturer Part Number:

  10220-55G3VC

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  3M Interconnect

• YTEOL:

  0

• Additional Feature:

  SHIELDED

• Body Breadth:

  0.37 inch

• Body Depth:

  0.449 inch

• Body Length:

  1.315 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  RIBBON D CONNECTOR

• Contact Finish Mating:

  GOLD (30) OVER NICKEL (100)

• Contact Gender:

  MALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  BELLOWED TYPE

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  500VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  PCT-POLYESTER

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.05 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  M2.5

• Mounting Option 2:

  THREADED

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.905 mm

• Plating Thickness:

  30u inch

• Rated Current (Signal):

  1 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  STEEL

• Terminal Length:

  0.11 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  20

• UL Flammability Code:

  94V-0
