10220-6202PC - 3M

Description: D-Sub Micro-D Connectors 20/MDR/RC/FSKT/BDMT ST/M2.6/SCW/30MIN

Download 10220-6202PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

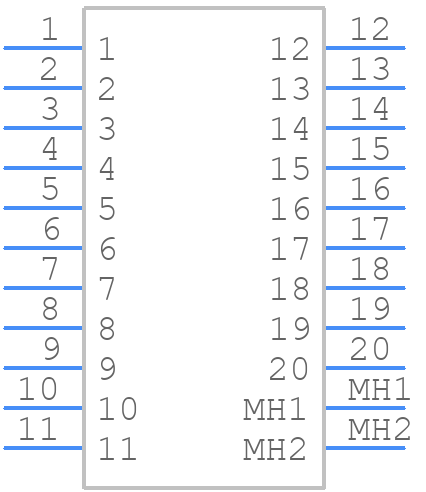

10220-6202PC - 3M - PCB symbol
click to zoom
PCB Footprints

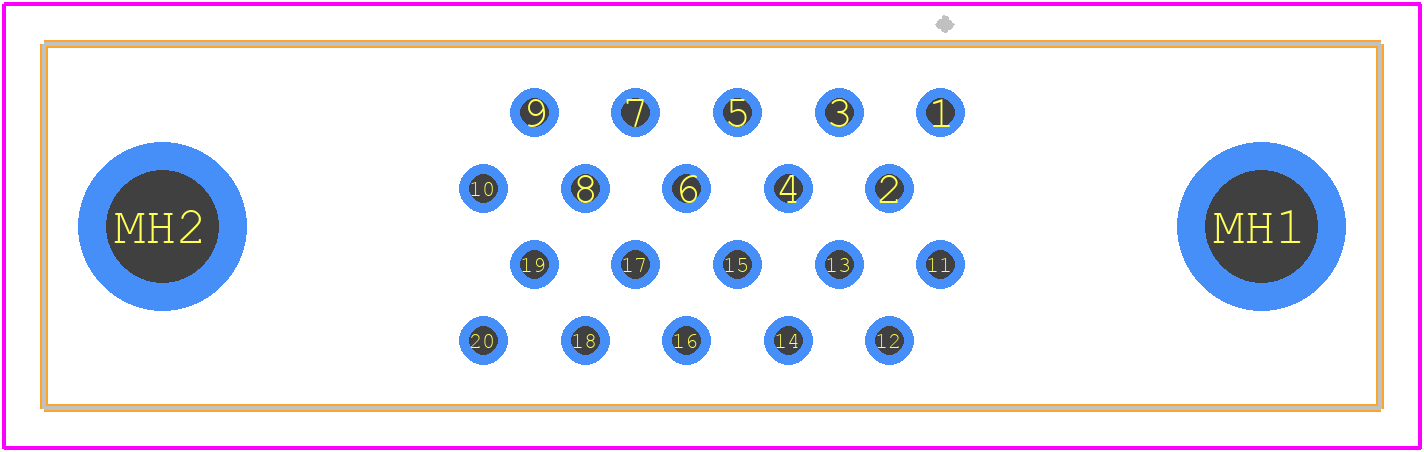

10220-6202PC - 3M PCB footprint - Other - Other - 10220-6202PC-4
click to zoom
3D Models
10220-6202PC - 3M - 3D model - Other - 10220-6202PC-4
click to zoom

10220-6202PC Details

  • Manufacturer Part Number:

    10220-6202PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

10220-6202PC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 10220-6202PC is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes AWG 18-26 with some adjustments to the wire stripping and termination.
  • The 10220-6202PC is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F).
  • The connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for up to 30 minutes.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

10220-6202PC Overview

Use the download button to access the 10220-6202PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10220, or try a keyword search, such as Telecom and Datacom Connectors
