Part Image

10220-M218PE - 3M

Description: 20, 20 Position Stacked, 2 Receptacles Connector Panel Mount, Through Hole, Right Angle Solder

Download 10220-M218PE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

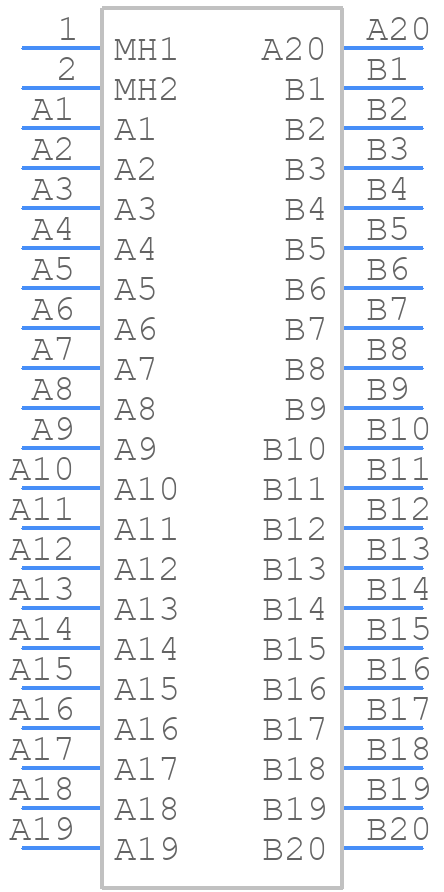

10220-M218PE - 3M - PCB symbol
click to zoom
PCB Footprints

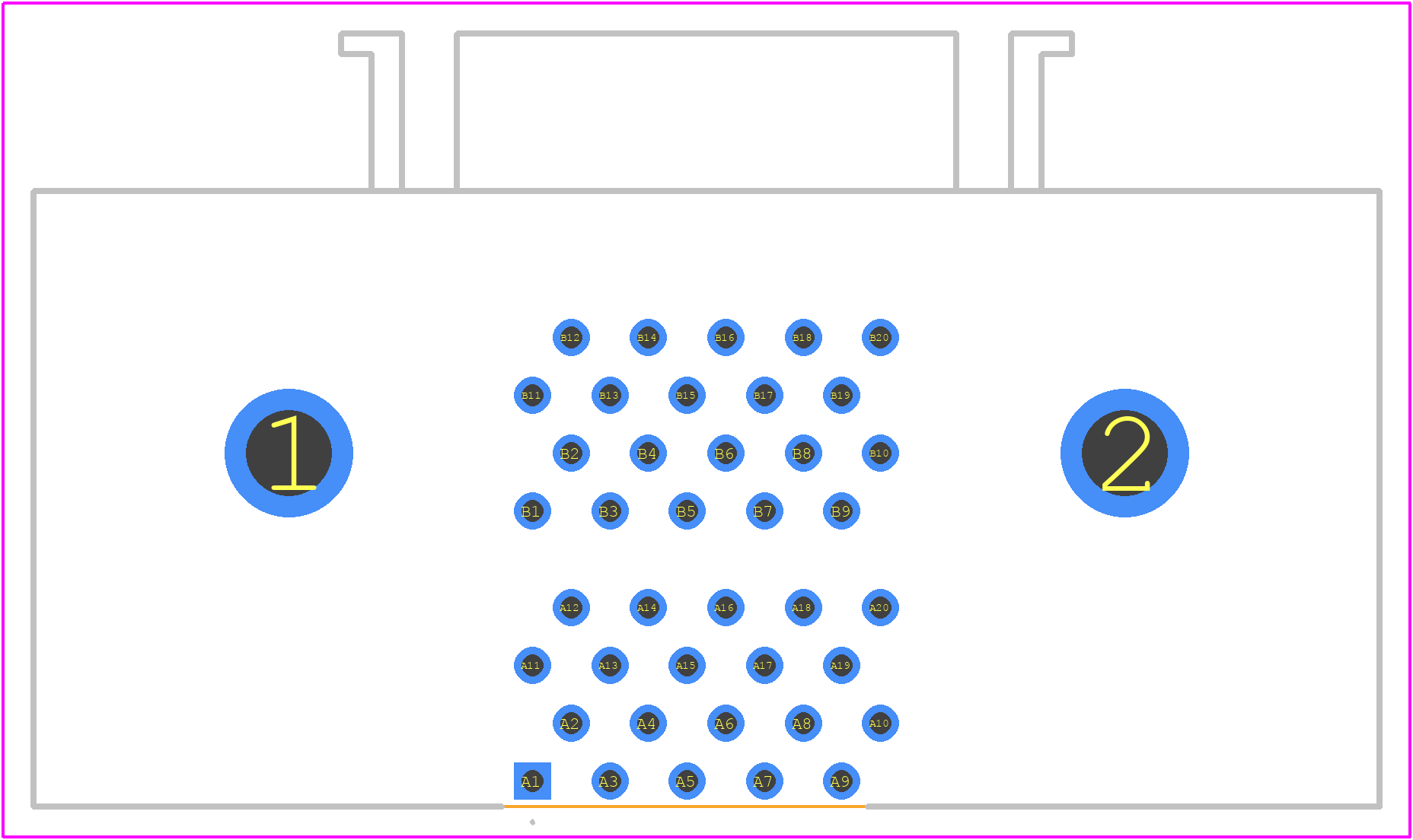

10220-M218PE - 3M PCB footprint - Other - Other - 10220-M218PE-4
click to zoom

10220-M218PE Details

  • Manufacturer Part Number:

    10220-M218PE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD OVER NICKEL

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

10220-M218PE Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.4 in-lbs) for the screw locks on the 10220-M218PE connector.
  • Yes, the 10220-M218PE connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
  • The maximum operating temperature for the 10220-M218PE connector is 125°C (257°F), but it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
  • The 10220-M218PE connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to follow the manufacturer's guidelines for environmental sealing and to ensure proper connector cleaning and drying.
  • The recommended mating cycle for the 10220-M218PE connector is 500-1000 cycles, depending on the application and environmental conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10220-M218PE Overview

Use the download button to access the 10220-M218PE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 10220, or try a keyword search, such as Telecom and Datacom Connectors
