10226-2200PE - 3M

Description: Receptacle MDR PCB SMT straight 26 pin 3M MDR 102 Series 1.27mm Pitch 26 Way Straight SMT Micro-D PCB Connector, Socket

Download 10226-2200PE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

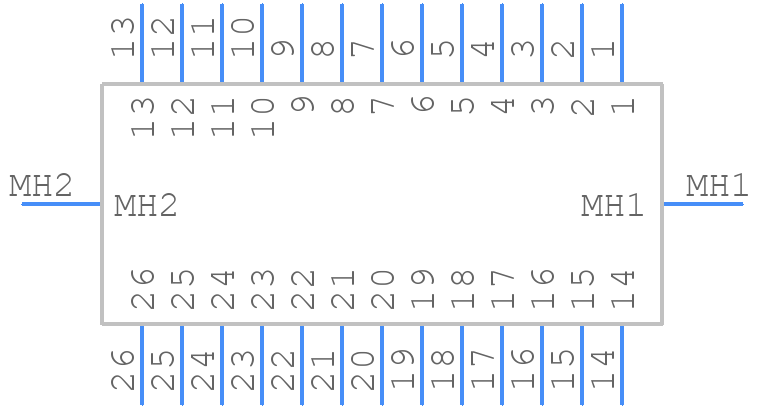

10226-2200PE - 3M - PCB symbol
click to zoom
PCB Footprints

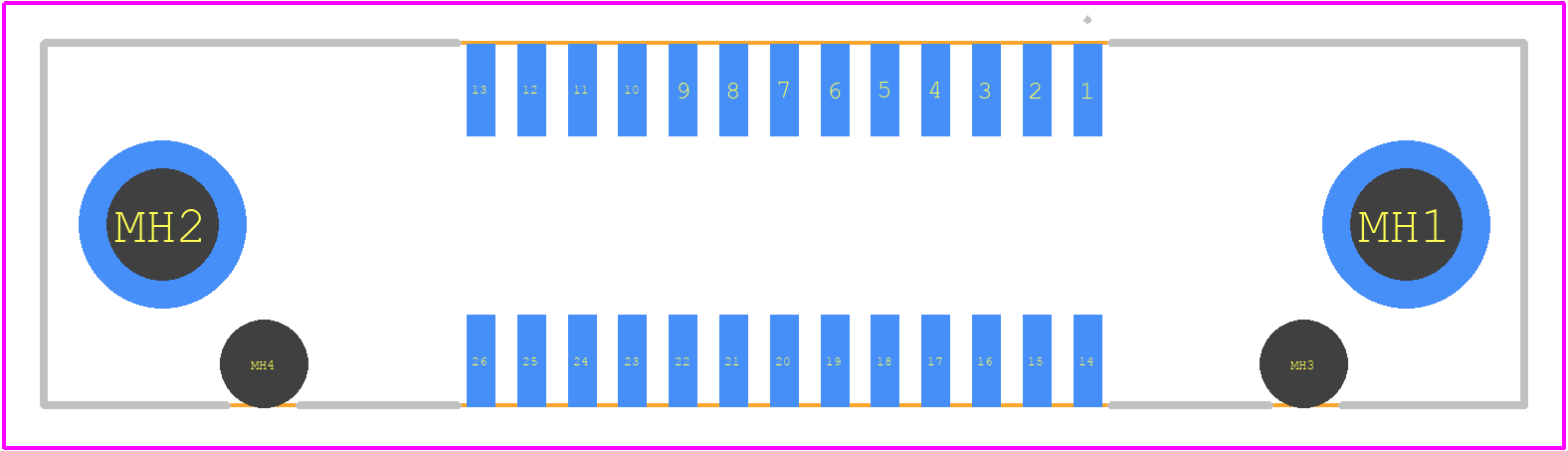

10226-2200PE - 3M PCB footprint - Other - Other - 10226-2200PE-2
click to zoom
3D Models
10226-2200PE - 3M - 3D model - Other - 10226-2200PE-2
click to zoom

10226-2200PE Details

  • Manufacturer Part Number:

    10226-2200PE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks, 4 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (20) OVER NICKEL (80)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

10226-2200PE Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
  • Yes, the 10226-2200PE is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and aerospace applications.
  • While the datasheet specifies 20 AWG wire, the connector can accommodate wire sizes ranging from 18 AWG to 22 AWG, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
  • The 10226-2200PE connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F).
  • Yes, the connector is designed to be resistant to moisture, corrosion, and many chemicals, making it suitable for use in harsh environments. However, it's essential to follow proper installation and sealing procedures to ensure the connector's integrity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10226-2200PE Overview

Use the download button to access the 10226-2200PE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10226, or try a keyword search, such as Telecom and Datacom Connectors
