10226-5212PL - 3M

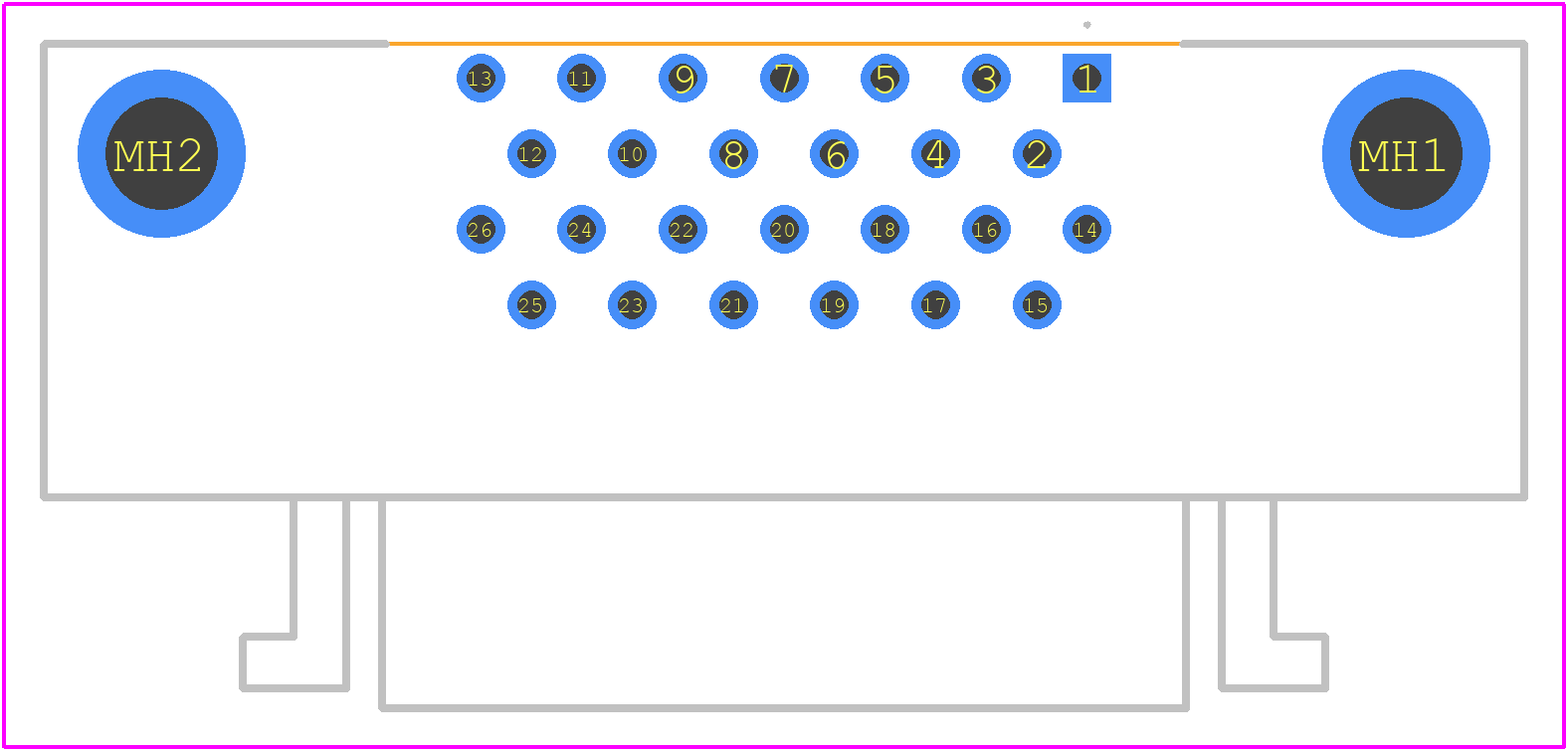

10226-5212PL Details

• Manufacturer Part Number:

  10226-5212PL

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  3M Interconnect

• YTEOL:

  7

• Additional Feature:

  SHEILDED

• Board Mounting Option:

  HOLE 0.11

• Body Breadth:

  0.37 inch

• Body Depth:

  0.45 inch

• Body Length:

  1.46 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  RIBBON D CONNECTOR

• Contact Finish Mating:

  GOLD (8) OVER NICKEL

• Contact Finish Termination:

  Gold Flash (Au) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  35 mΩ

• Contact Style:

  CENTRONIC

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  300 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  GLASS FILLED POLYESTER

• MIL Conformance:

  NO

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  M2.5

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD AND PANEL

• Number Of PCB Rows:

  4

• Number of Ports:

  1

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.9 mm

• Plating Thickness:

  8u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  CUL; UL

• Shell Finish:

  NICKEL

• Shell Material:

  ZINC ALLOY

• Terminal Length:

  0.154 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0
