10226-55H3PC footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

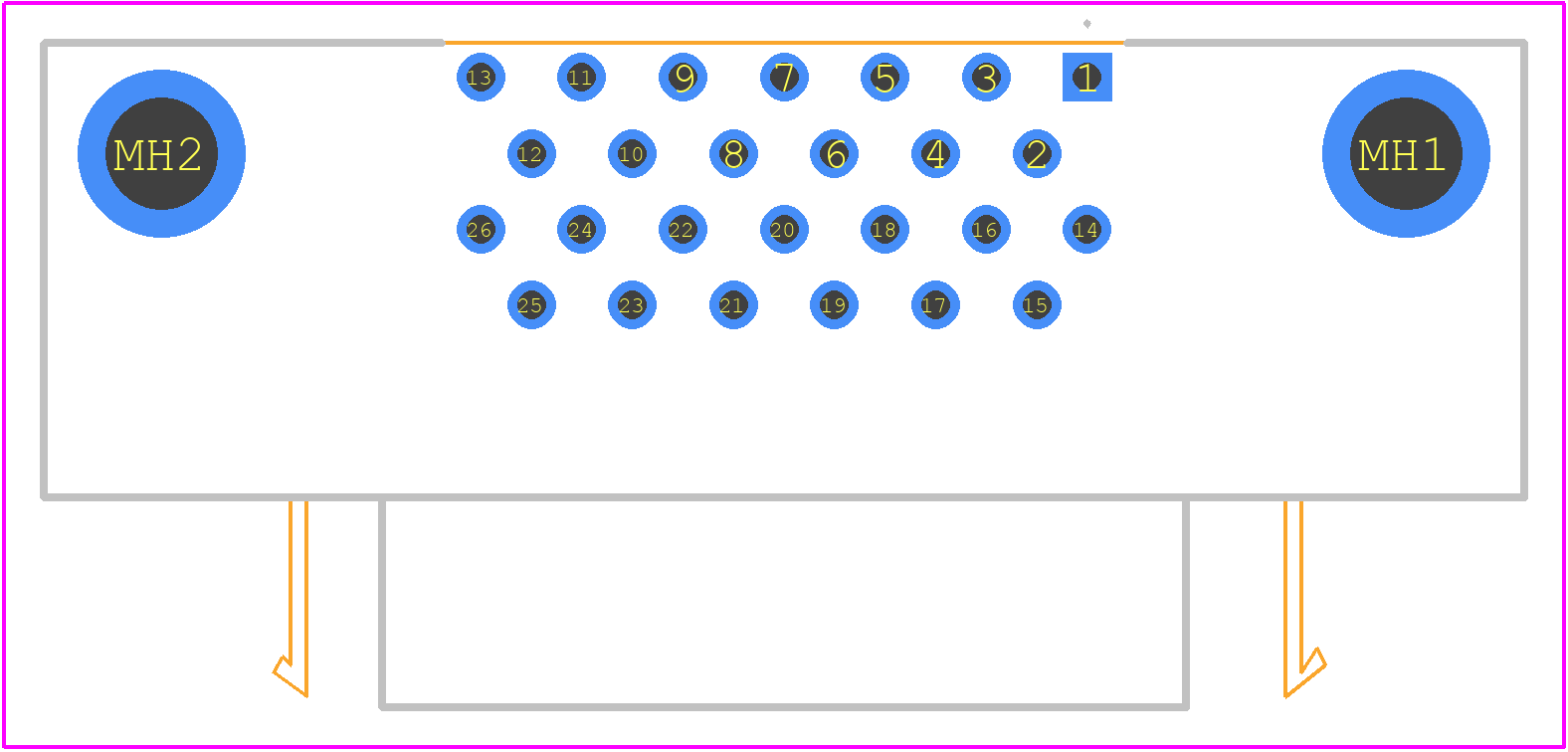

10226-55H3PC - 3M PCB footprint - Other - Other - 10226-55H3PC-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 10226-55H3PC
Part Number 10226-55H3PC
Manufacturer 3M
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - 10226-55H3PC-1
Released Date Sep 21, 2022
Last Modified Date Dec 27, 2024 6:51 AM UTC
Pinout / Pin List Click Here (Member Only)

10226-55H3PC Details

Manufacturer Part Number:
10226-55H3PC
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
19 Weeks
Manufacturer:
3M Interconnect
Connector Type:
RIBBON D CONNECTOR

10226-55H3PC Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 10226-55H3PC is designed to withstand vibrations and is suitable for use in high-vibration environments.
The operating temperature range for the 10226-55H3PC is -40°C to 125°C (-40°F to 257°F).
Yes, the 10226-55H3PC is designed to be resistant to chemicals and moisture, making it suitable for use in harsh environments.
The mating cycle life of the 10226-55H3PC is 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

10226-55H3PC Overview

Use the download button to access the 10226-55H3PC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 10226, or try a keyword search, such as Telecom and Datacom Connectors
