10226-6212PL - 3M

Description: 26 Position Receptacle Connector Panel Mount, Through Hole Solder

Download 10226-6212PL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

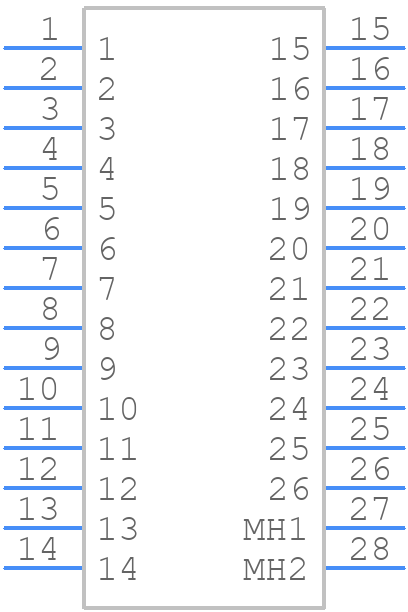

10226-6212PL - 3M - PCB symbol
click to zoom
PCB Footprints

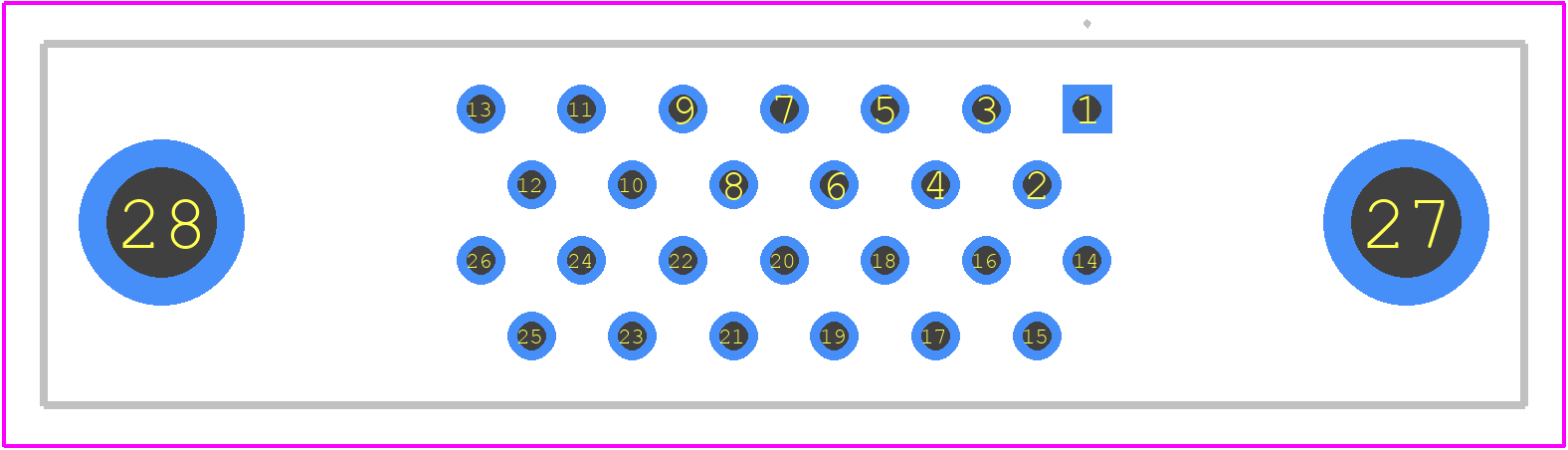

10226-6212PL - 3M PCB footprint - Other - Other - 10226-6212PL-6
click to zoom
3D Models
10226-6212PL - 3M - 3D model - Other - 10226-6212PL-6
click to zoom

10226-6212PL Details

  • Manufacturer Part Number:

    10226-6212PL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7.49

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

10226-6212PL Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 10226-6212PL is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • Yes, the 10226-6212PL is rated for outdoor use and can withstand exposure to moisture and temperature fluctuations.
  • The maximum wire size that can be used with the 10226-6212PL is 14 AWG (2.08 mm²).
  • The 10226-6212PL is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10226-6212PL Overview

Use the download button to access the 10226-6212PL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10226, or try a keyword search, such as Telecom and Datacom Connectors
