10226-R21TS - 3M

Description: 26 Position Receptacle Connector Panel Mount, Through Hole Press-Fit

Download 10226-R21TS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

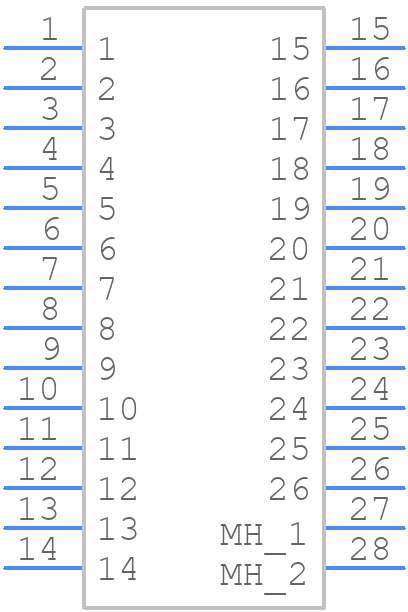

Symbol
10226-R21TS - 3M - PCB symbol
click to zoom

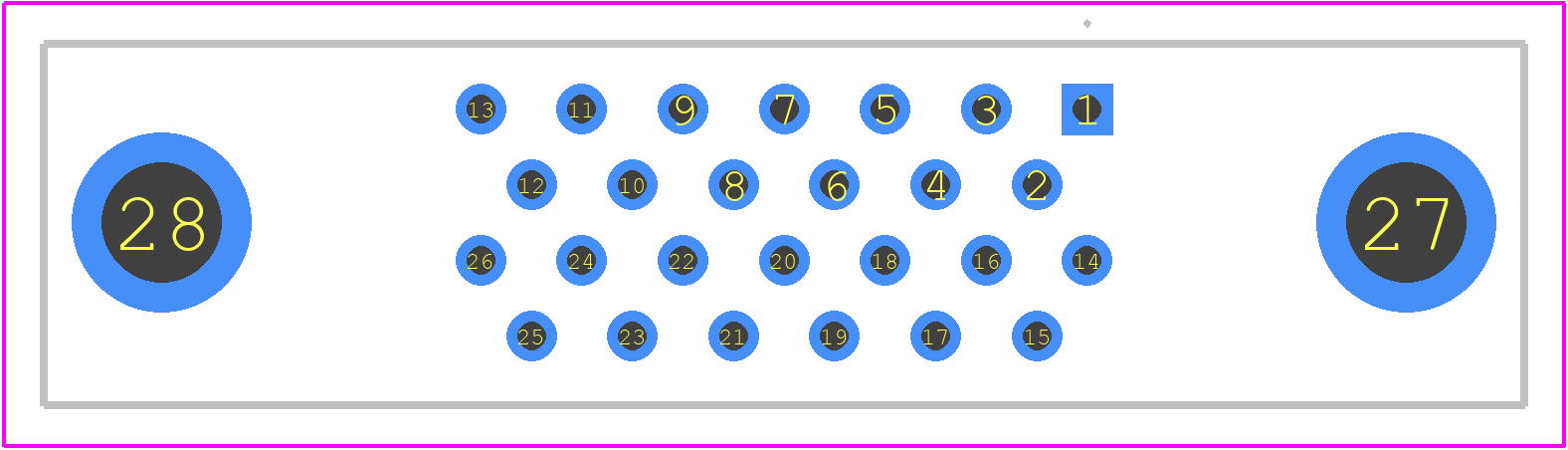

PCB Footprints
10226-R21TS - 3M PCB footprint - Other - Other - 10226-R21TS-4
click to zoom
3D Models
10226-R21TS - 3M - 3D model - Other - 10226-R21TS-4
click to zoom

10226-R21TS Details

  • Manufacturer Part Number:

    10226-R21TS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (80)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

10226-R21TS Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the 10226-R21TS is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 10226-R21TS is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 10226-R21TS is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult the datasheet and 3M's application notes for specific guidance.
  • While the 10226-R21TS is designed for use with 24 AWG wire, it may be possible to use it with other wire sizes. However, it's recommended to consult with 3M or a qualified engineer to ensure compatibility and proper termination.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10226-R21TS Overview

Use the download button to access the 10226-R21TS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10226, or try a keyword search, such as Telecom and Datacom Connectors
