- Part Number 10236-55G3PL
- Manufacturer 3M
- Pin Count 38
- Part Category Connector
- Package Category Other
- Footprint Name Other - 10236-55G3PL-1
- Released Date Nov 7, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
10236-55G3PL Details
-
Manufacturer Part Number:
10236-55G3PL
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
19 Weeks
-
Manufacturer:
3M Interconnect
-
YTEOL:
6.8
-
Connector Type:
RIBBON D CONNECTOR
-
Contact Finish Mating:
GOLD (8) OVER NICKEL (50)
10236-55G3PL Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks on the 10236-55G3PL connector.
-
Yes, the 10236-55G3PL connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
-
The operating temperature range for the 10236-55G3PL connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the 10236-55G3PL connector is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
-
The 10236-55G3PL connector is designed to operate in harsh environments, but it's recommended to follow the manufacturer's guidelines for environmental testing and to ensure proper sealing and protection against moisture and chemicals.
Trust Checks
Expert Contribution
System Verified
Community Approved
10236-55G3PL Overview

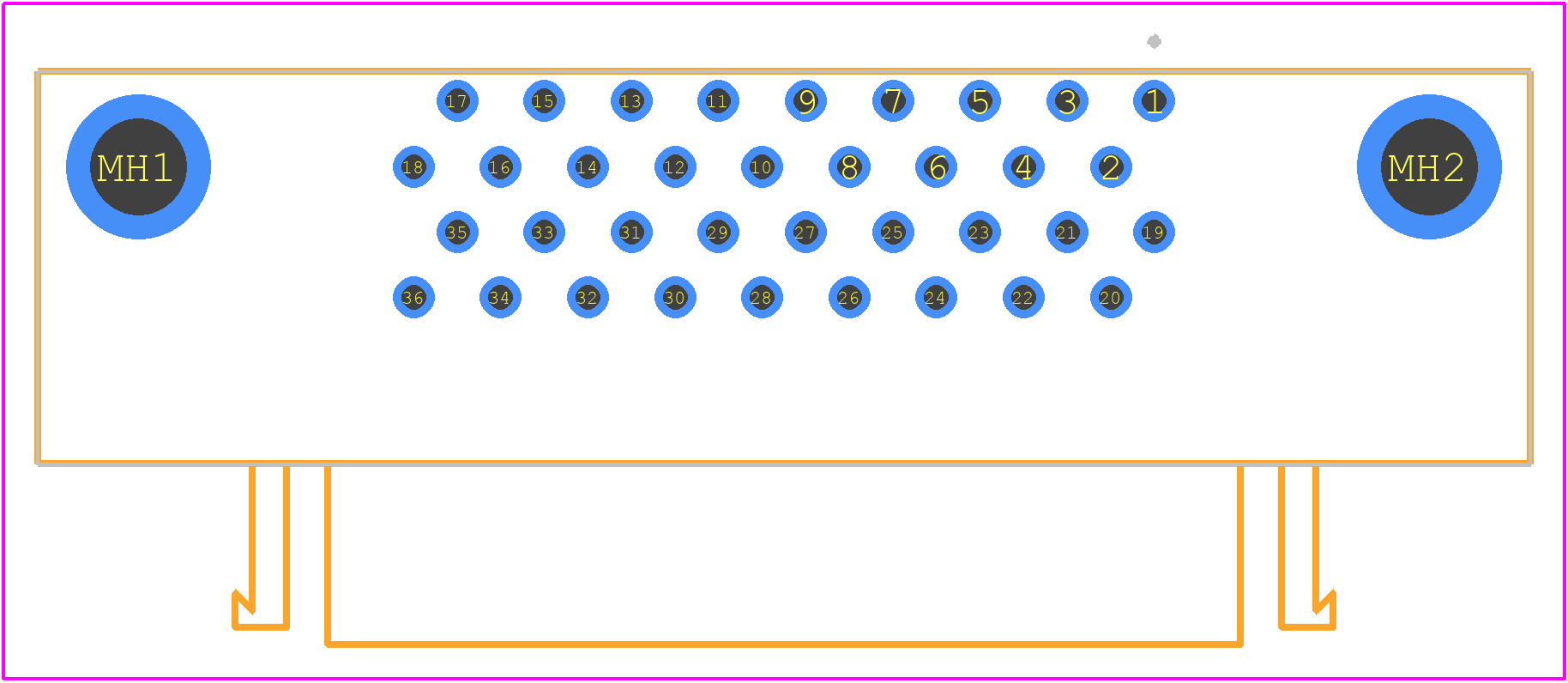

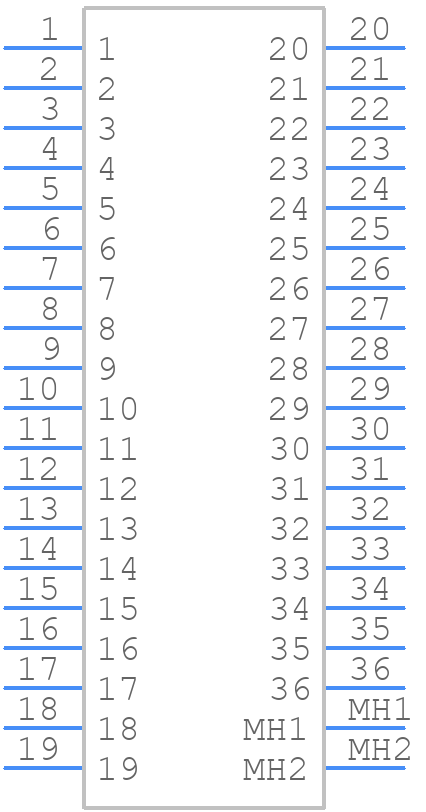

Use the download button to access the 10236-55G3PL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10236,
or try a keyword search, such as Telecom and Datacom Connectors
