The recommended torque value is 0.5-1.0 Nm (4.4-8.8 in-lbs) for the screw terminals.
Yes, the 10240-1210PE is designed to withstand high-vibration environments, but it's recommended to follow the installation guidelines and torque specifications to ensure reliable connections.
The 10240-1210PE has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and protection from environmental factors like moisture and UV exposure.
The 10240-1210PE has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes from 20 AWG to 26 AWG, but it's essential to follow the manufacturer's guidelines and ensure proper wire stripping and termination.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10240-1210PE Overview

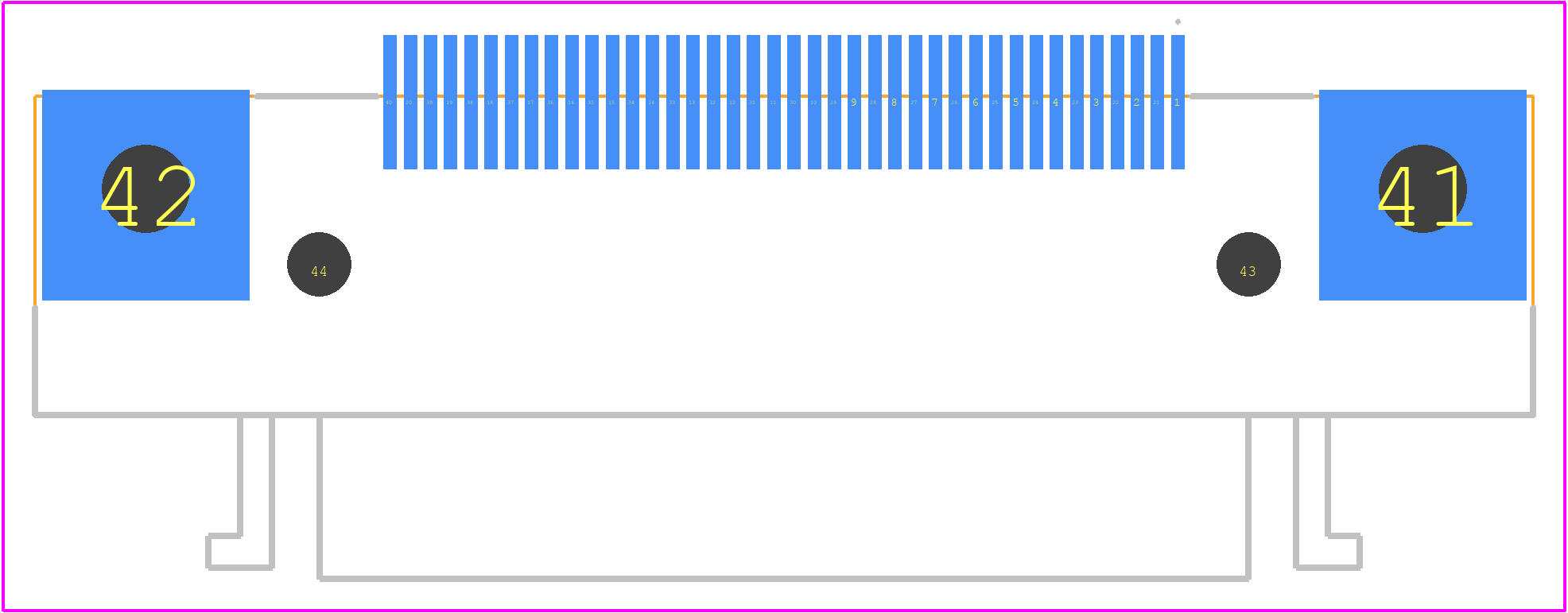

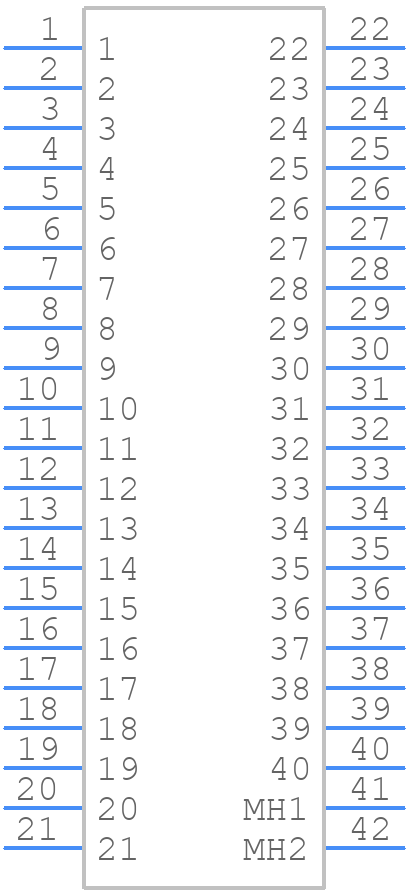

Use the download button to access the 10240-1210PE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 10240,
or try a keyword search, such as Telecom and Datacom Connectors
