Symbol

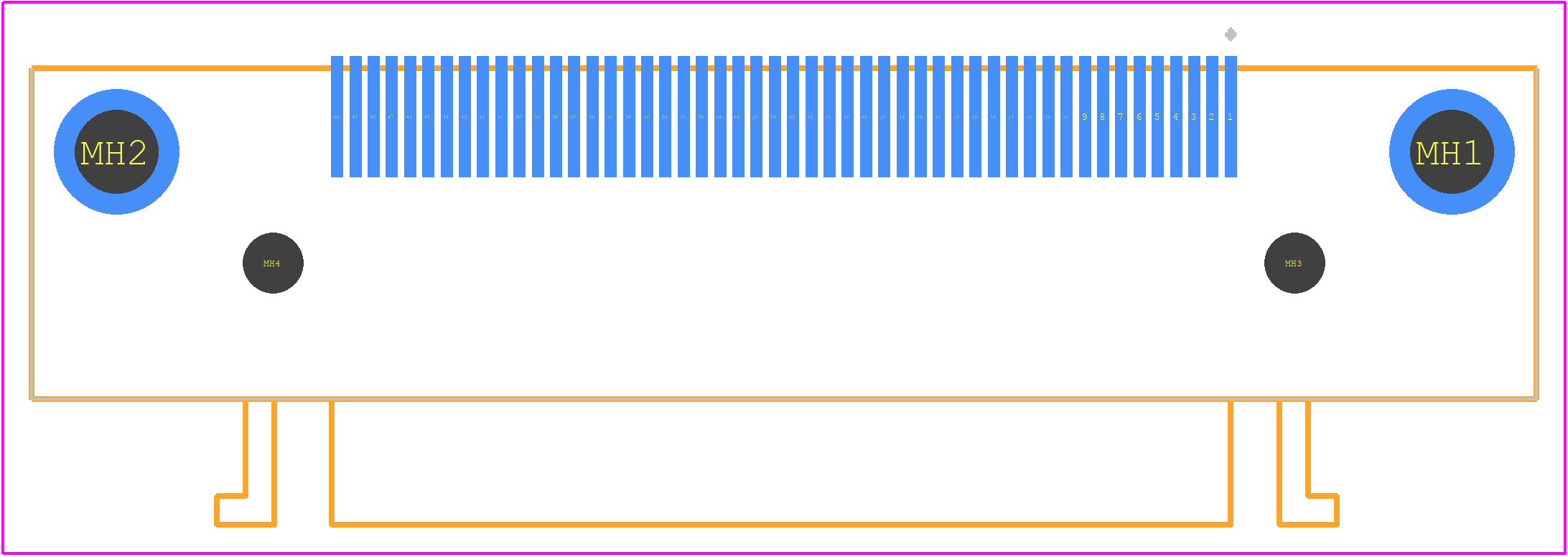

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 10250-1S10PE
- Part Number 10250-1S10PE
- Manufacturer 3M
- Pin Count 52
- Part Category Connector
- Package Category Other
- Footprint Name Other - 10250-1S10PE-1
- Released Date Aug 29, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
10250-1S10PE Details
-
Manufacturer Part Number:
10250-1S10PE
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
19 Weeks
-
Manufacturer:
3M Interconnect
10250-1S10PE Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw locks on the 10250-1S10PE connector.
-
Yes, the 10250-1S10PE connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and screw torque.
-
The maximum operating temperature for the 10250-1S10PE connector is 125°C (257°F), but it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
-
The 10250-1S10PE connector is designed to be resistant to moisture and chemicals, but it's recommended to follow the manufacturer's guidelines for environmental testing and to ensure proper sealing and protection.
-
The recommended mating cycle for the 10250-1S10PE connector is 500-1000 cycles, depending on the application and environmental conditions.
Trust Checks
Expert Contribution
System Verified
Community Approved
10250-1S10PE Overview
Use the download button to access the 10250-1S10PE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 10250,
or try a keyword search, such as Telecom and Datacom Connectors
