Part Image

10250-55H3PC - 3M

Description: 50 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder 30.0µin (0.76µm)

Download 10250-55H3PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10250-55H3PC - 3M - PCB symbol
click to zoom
PCB Footprints

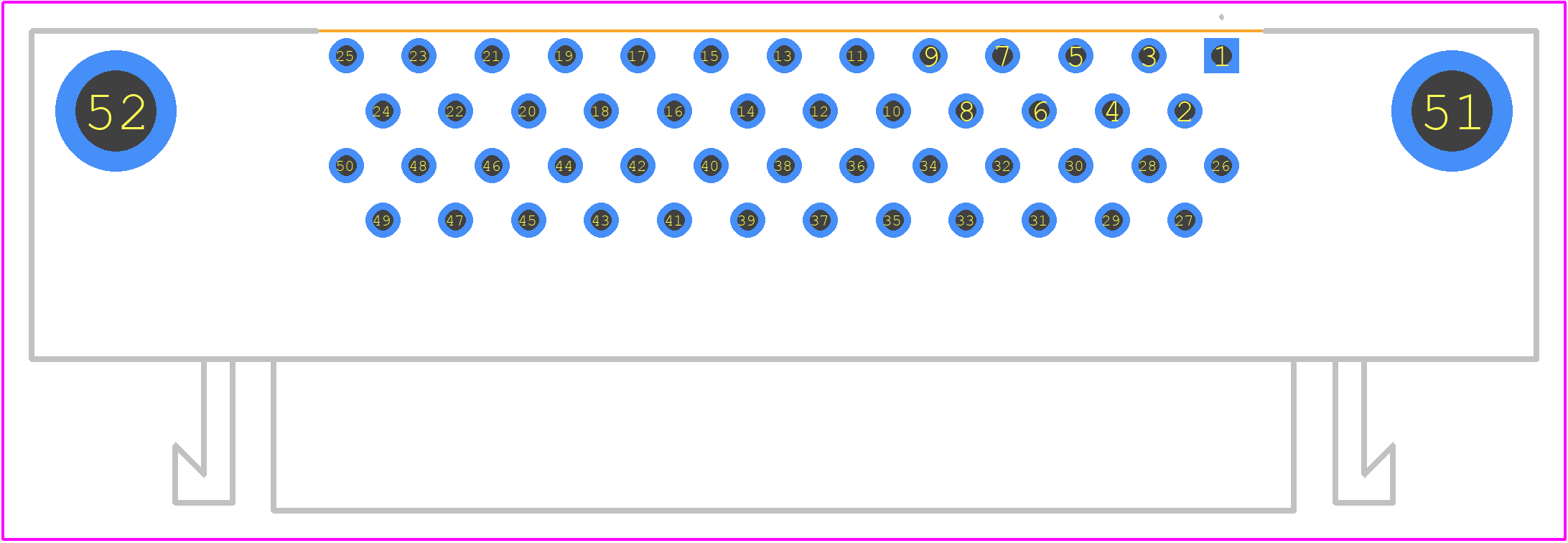

10250-55H3PC - 3M PCB footprint - Other - Other - 10250-55H3PC-3
click to zoom

10250-55H3PC Details

  • Manufacturer Part Number:

    10250-55H3PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (100)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

10250-55H3PC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 10250-55H3PC is designed to withstand high-vibration environments, but it's recommended to follow the installation instructions and torque specifications to ensure reliable performance.
  • The 10250-55H3PC has a IP67 rating, making it suitable for outdoor use, but it's essential to ensure proper sealing and installation to maintain the rating.
  • The 10250-55H3PC has an operating temperature range of -40°C to 125°C (-40°F to 257°F).
  • The 10250-55H3PC is designed for use with specific cable types. Consult the datasheet or contact 3M Interconnect for compatibility information before using a different cable type.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

10250-55H3PC Overview

Use the download button to access the 10250-55H3PC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 10250, or try a keyword search, such as Telecom and Datacom Connectors
