- Part Number 10250-6202PC
- Manufacturer 3M
- Pin Count 52
- Part Category Connector
- Package Category Other

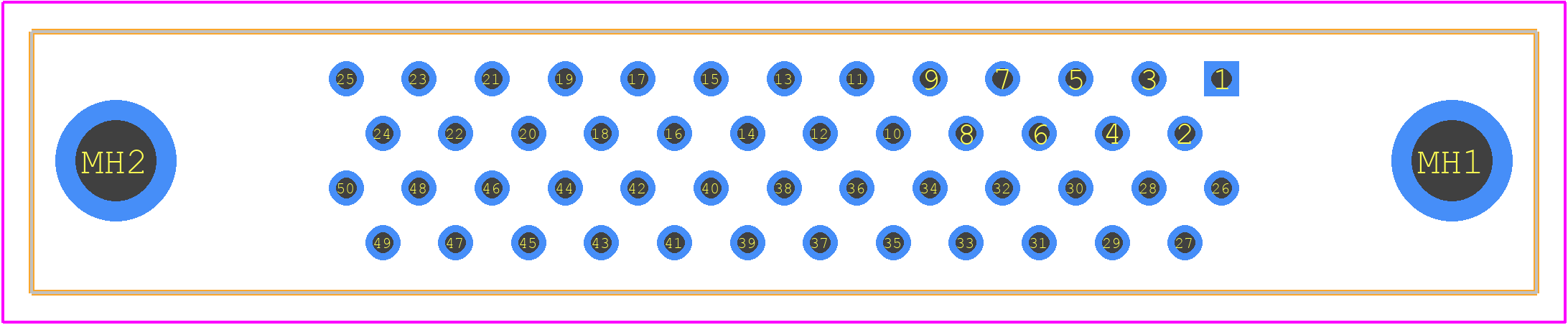

- Footprint Name Other - 10250-6202PC-3
- Released Date Sep 22, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
10250-6202PC Details
-
Manufacturer Part Number:
10250-6202PC
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
15 Weeks, 6 Days
-
Manufacturer:
3M Interconnect
-
YTEOL:
6.8
-
Connector Type:
RIBBON D CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
10250-6202PC Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
-
Yes, the 10250-6202PC is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
-
The 10250-6202PC has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection or sealing for extended outdoor use.
-
The operating temperature range for the 10250-6202PC is -40°C to 105°C (-40°F to 221°F).
-
While it's technically possible to use a different wire gauge, it's not recommended as it may affect the connector's performance and reliability. The recommended wire gauge is 20-24 AWG.
Trust Checks
Expert Contribution
System Verified
Community Approved
10250-6202PC Overview
Use the download button to access the 10250-6202PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10250,
