Technical Content
Part Image

10268-55H3PC - 3M

Description: 68 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder

Download 10268-55H3PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10268-55H3PC - 3M - PCB symbol
click to zoom

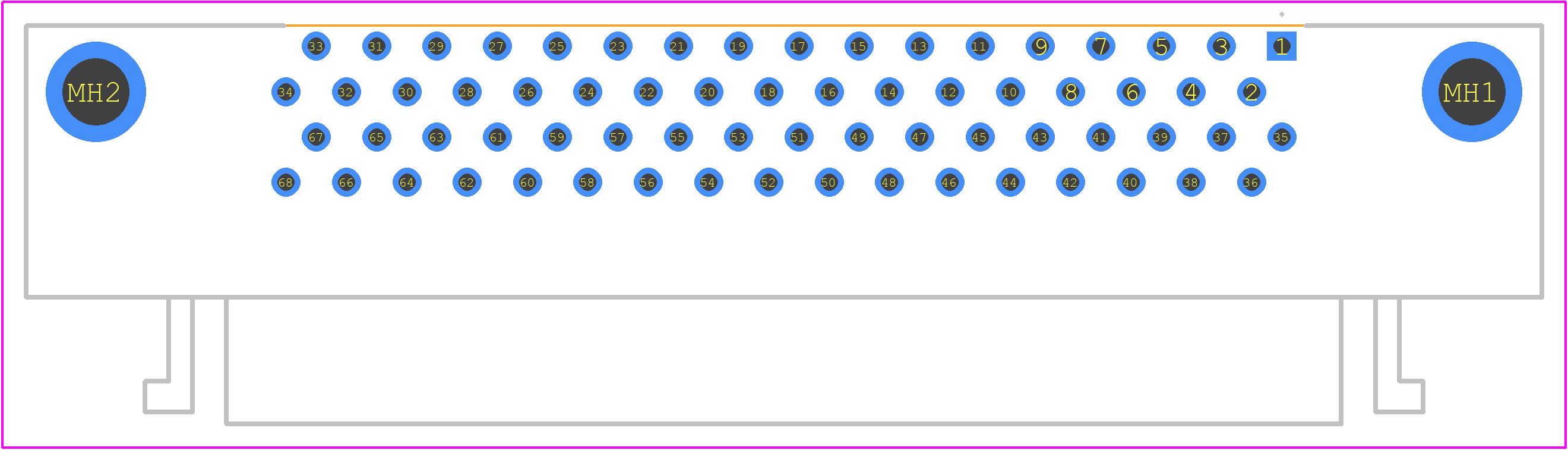

PCB Footprints
10268-55H3PC - 3M PCB footprint - Other - Other - 10268-55H3PC-1
click to zoom
3D Models
10268-55H3PC - 3M - 3D model - Other - 10268-55H3PC-1
click to zoom

10268-55H3PC Details

  • Manufacturer Part Number:

    10268-55H3PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.7

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (100)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

10268-55H3PC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 10268-55H3PC is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • Yes, the 10268-55H3PC is designed for outdoor use and can withstand exposure to moisture and temperature fluctuations.
  • The maximum operating temperature for the 10268-55H3PC is 125°C (257°F).
  • No, the 10268-55H3PC is designed for use with wire gauges 20 AWG or smaller. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10268-55H3PC Overview

Use the download button to access the 10268-55H3PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10268, or try a keyword search, such as Telecom and Datacom Connectors
