1028450000 - Weidmüller

Description: PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 3.50 mm, Number of poles: 36, 90°, Solder pin length: 3.2 mm, tinned, black, Box

Download 1028450000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

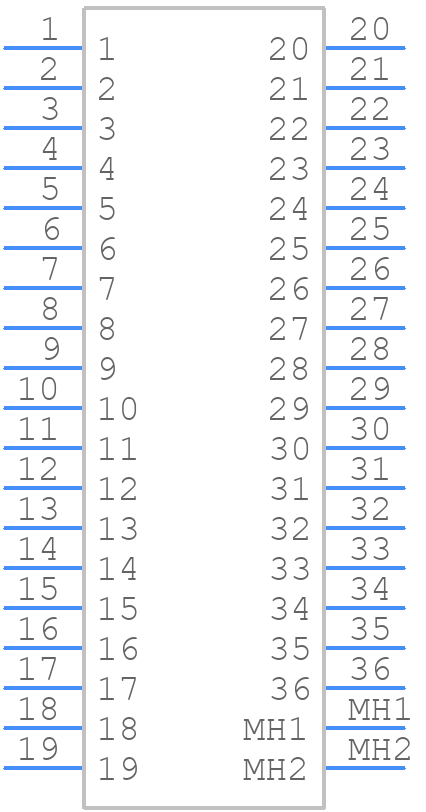

1028450000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

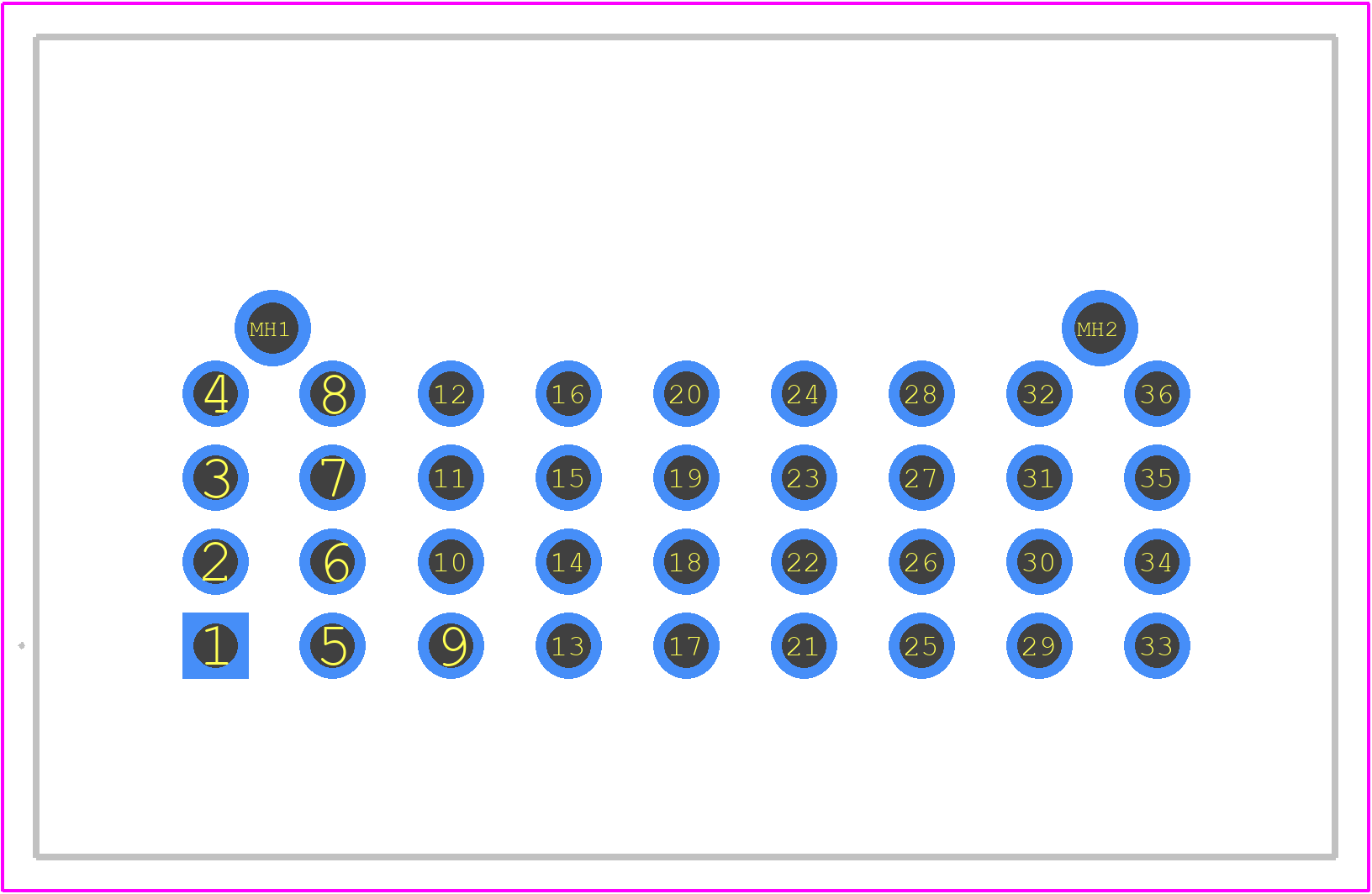

1028450000 - Weidmüller PCB footprint - Other - Other - 1028450000-1
click to zoom
3D Models
1028450000 - Weidmüller - 3D model - Other - 1028450000-1
click to zoom

1028450000 Details

  • Manufacturer Part Number:

    1028450000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    5.68

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    36

  • Rated Current:

    8 A

  • Rated Voltage:

    100 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1028450000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1028450000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1028450000 is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
  • The 1028450000 has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 1028450000 is designed for use in hazardous locations and meets the requirements for explosion protection according to ATEX and IECEx standards.
  • The maximum cable diameter that can be connected to the 1028450000 is 12 mm, as specified by Weidmüller.
