- Part Number 102A10049X
- Manufacturer CONEC
- Pin Count 13
- Part Category Connector
- Package Category Other

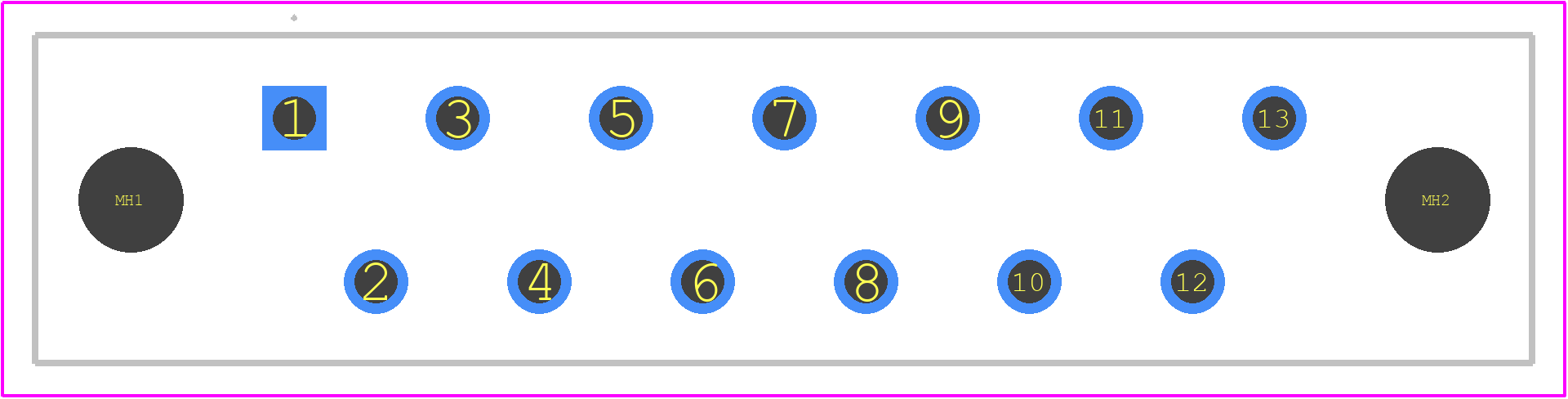

- Footprint Name Other - 102A10049X-1
- Released Date Jan 22, 2024
- Last Modified Date Jan 23, 2024 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
102A10049X Details
-
Manufacturer Part Number:
102A10049X
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Conec Corporation
-
YTEOL:
0
-
Connector Type:
BOARD CONNECTOR
-
Contact Finish Mating:
AU ON NI
-
Contact Finish Termination:
Tin (Sn)
-
Contact Material:
COPPER ALLOY
Trust Checks
Community Provided
System Verified
Community Approved
102A10049X Overview
Use the download button to access the 102A10049X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 102A1,
or try a keyword search, such as Headers and Edge Type Connectors
