103 - Keystone Electronics

Description: Battery Holder (Open) Coin, 20.0mm 1 Cell PC Pin

Download 103 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
103 - Keystone Electronics - PCB symbol
click to zoom
PCB Footprints

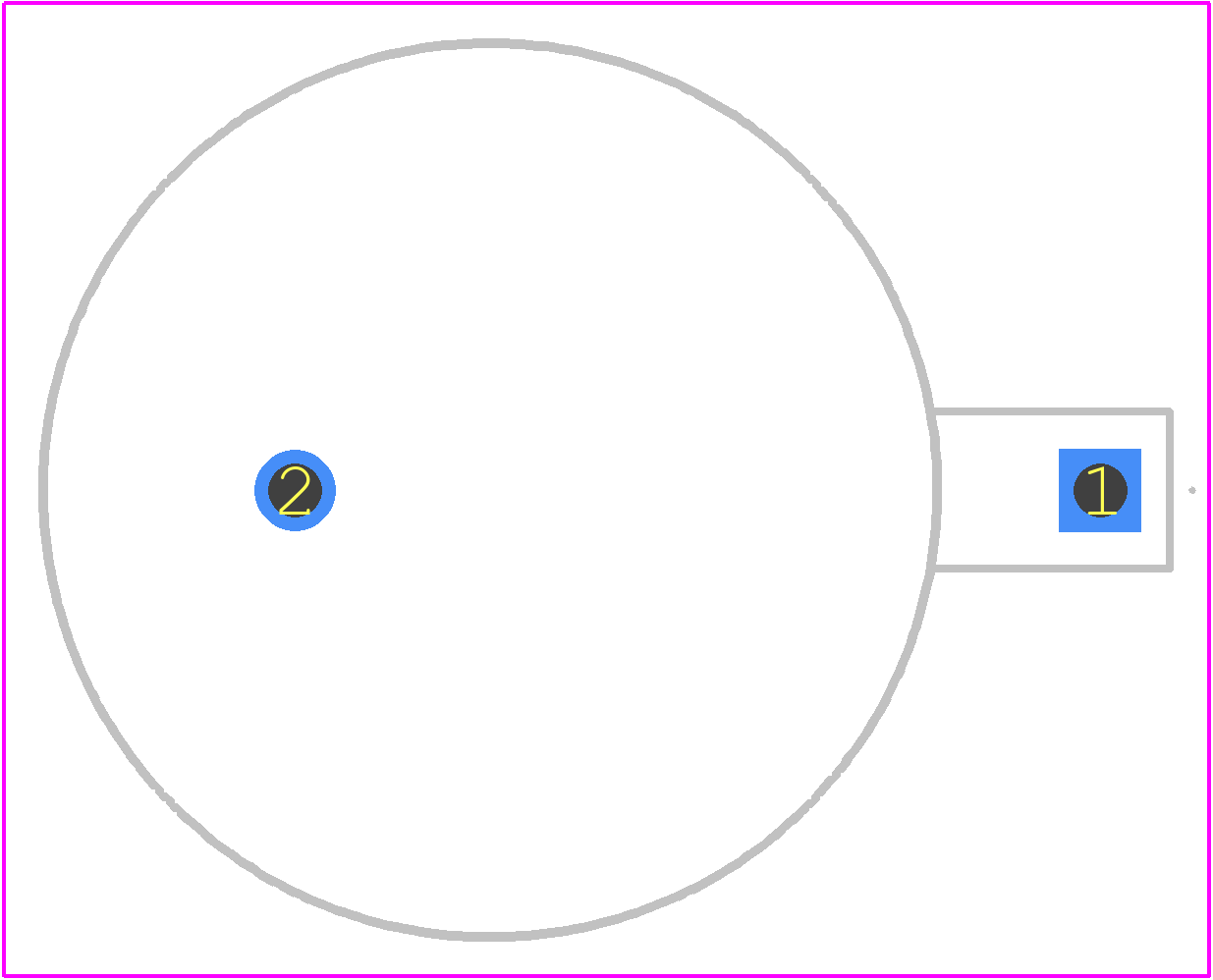

103 - Keystone Electronics PCB footprint - Other - Other - 103-1
click to zoom
3D Models
103 - Keystone Electronics - 3D model - Other - 103-1
click to zoom

103 Details

  • Manufacturer Part Number:

    103

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Keystone Electronics Corp

  • Body Depth:

    0.335 inch

  • Body Length:

    1.13 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Nickel (Ni)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    LEAF

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    20.49 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    2
