Part Image

10321051 - Molex

Description: 5.08mm Pitch SPOX Wire-to-Board Header, Vertical, with Friction Lock, 5 Circuits

Download 10321051 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10321051 - Molex - PCB symbol
click to zoom

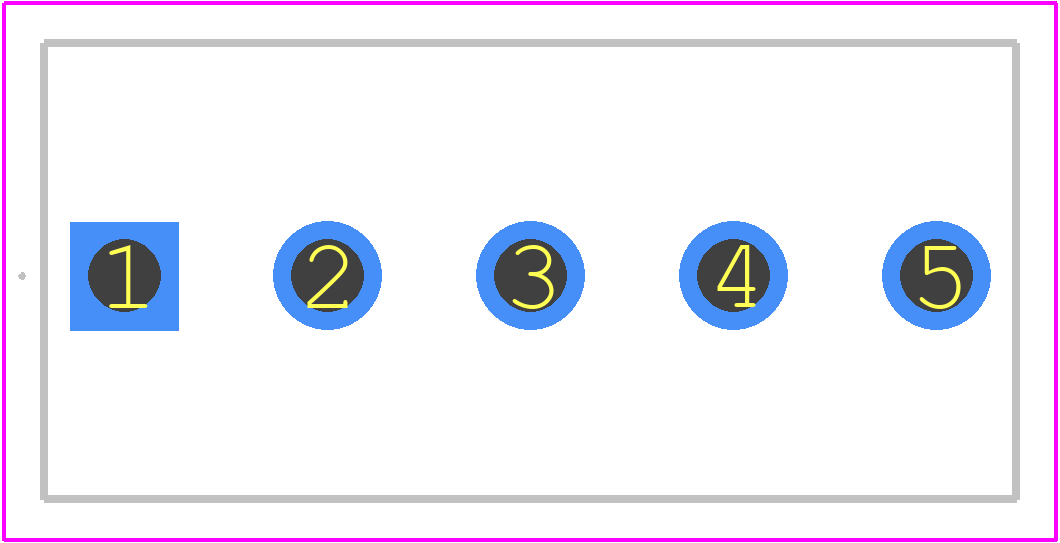

PCB Footprints
10321051 - Molex PCB footprint - Other - Other - 10321051-2
click to zoom
3D Models
10321051 - Molex - 3D model - Other - 10321051-2
click to zoom

10321051 Details

  • Manufacturer Part Number:

    10321051

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Hong Kong SAR, Mainland China, South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7.88

  • Additional Feature:

    RATED CURRENT(POWER):7A, POLARIZED

  • Body Breadth:

    0.449 inch

  • Body Depth:

    0.508 inch

  • Body Length:

    0.957 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

  • UL Flammability Code:

    94V-2

10321051 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). This information can be found in the Molex application notes or by contacting Molex technical support.
  • Yes, the 10321051 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's recommended to consult with Molex technical support for specific application requirements.
  • The 10321051 connector is designed for use with wire sizes ranging from 24 AWG to 16 AWG. Using larger wire sizes may require specialized tools and may not be recommended by Molex.
  • The 10321051 connector has a rating of IP67, which means it is protected against dust and temporary immersion in water up to 1 meter. However, for outdoor or harsh environmental applications, additional protection measures such as conformal coating or potting may be required.
  • It's not recommended to use the 10321051 connector with mating connectors from other manufacturers, as compatibility and performance cannot be guaranteed. Molex recommends using mating connectors from their own product line to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10321051 Overview

Use the download button to access the 10321051 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10321, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
