- Part Number 10380-T030
- Manufacturer Sumida
- Pin Count 10
- Part Category Transformer
- Package Category Other
- Footprint Name Other - 10380-T030-2
- Released Date Oct 22, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
10380-T030 Details
-
Manufacturer Part Number:
10380-T030
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Manufacturer:
Sumida Corporation
-
Additional Feature:
HEIGHT DIM INCLUDE TERMINAL ALSO
-
Height:
12.8 mm
-
Input Voltage-Max:
18 V
-
Input Voltage-Min:
4 V
-
JESD-609 Code:
e3
-
Length:
13.8 mm
10380-T030 Frequently Asked Questions (FAQs)
-
A symmetrical layout with a ground plane underneath the inductor is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.
-
The 10380-T030 is rated for operation up to 125°C, but derating may be necessary for temperatures above 100°C. Consult the manufacturer's application notes for specific guidance.
-
A reflow soldering profile with a peak temperature of 260°C and a dwell time of 30-60 seconds is recommended. Consult the manufacturer's application notes for specific guidance.
-
The 10380-T030 is designed to withstand moderate vibration, but extreme vibration may affect its performance. Consult the manufacturer's application notes for specific guidance on vibration testing and derating.
-
The inductor's impedance and Q factor will change with frequency. Consult the manufacturer's application notes or simulation models for specific guidance on frequency-dependent performance.
Trust Checks
Expert Contribution
System Verified
Community Approved
10380-T030 Overview

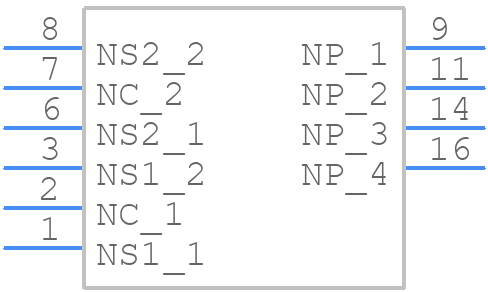

Use the download button to access the 10380-T030 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10380,
or try a keyword search, such as SMPS Transformers
