1038110000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17.5 A, Pitch in mm: 3.81, Number of poles: 8, THT solder connection, Box

Download 1038110000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1038110000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

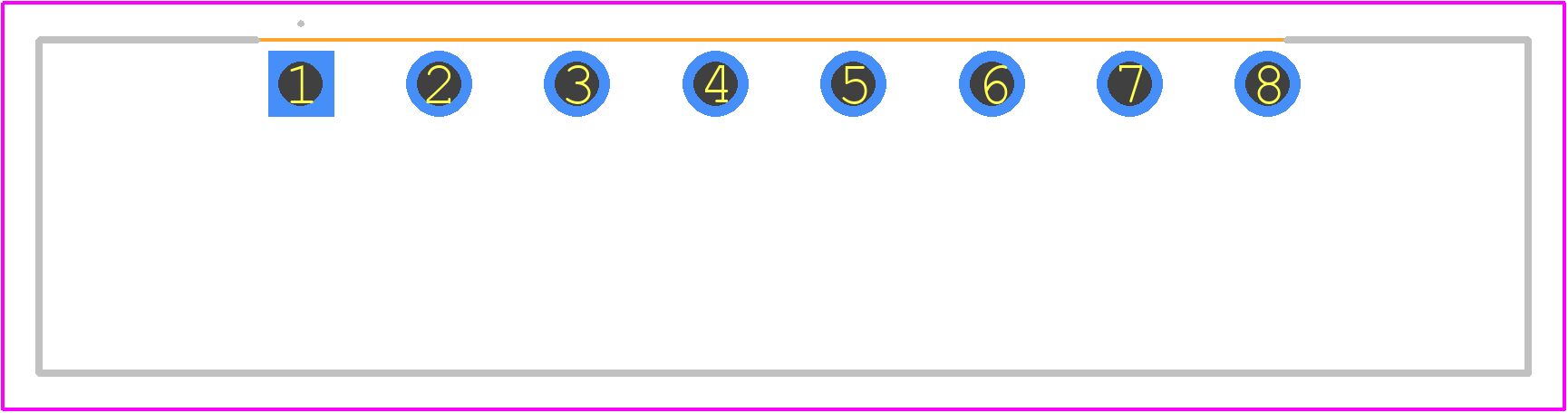

1038110000 - Weidmüller PCB footprint - Other - Other - 1038110000-1
click to zoom
3D Models
1038110000 - Weidmüller - 3D model - Other - 1038110000-1
click to zoom

1038110000 Details

  • Manufacturer Part Number:

    1038110000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1038110000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1038110000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1038110000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The recommended torque for the screw terminals on the 1038110000 is 0.5 Nm to 1.2 Nm, depending on the wire size and application.
  • The 1038110000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1038110000 has an IP20 rating, providing protection against solid objects larger than 12 mm and no protection against water.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1038110000 Overview

Use the download button to access the 1038110000 schematic symbol, PCB footprint, and 3D model.
