104-2-A-12/2D - Pickering

Description: Pickering Series 104 reed relay 104-2-A-12/2D: 2 Form A - DPST N.O.; 1.5kV Standoff; 1A, 25W, 1000V switching, 2000V stand-off; 12V coil, 750 Ω; diode fitted; 6.22×29×12.5mm. Industries: ATE, semiconductor test, solar/PV monitoring, EV/battery test.

Download 104-2-A-12/2D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 104-2-A-12/2D model

Email notifications will be applied after download.

Send part feedback

Symbol

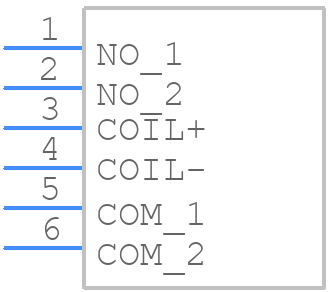

104-2-A-12/2D - Pickering - PCB symbol

PCB Footprints

104-2-A-12/2D - Pickering PCB footprint - Other - Other - 104-2-A-12/2D-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 104-2-A-12/2D
Part Number 104-2-A-12/2D
Manufacturer Pickering
Pin Count 6
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - 104-2-A-12/2D-1
Released Date May 30, 2024
Last Modified Date Jul 13, 2026 10:37 AM UTC
Pinout / Pin List Click Here (Member Only)

104-2-A-12/2D Details
