- Part Number 104-40016
- Manufacturer ept
- Pin Count 34
- Part Category Connector
- Package Category Other

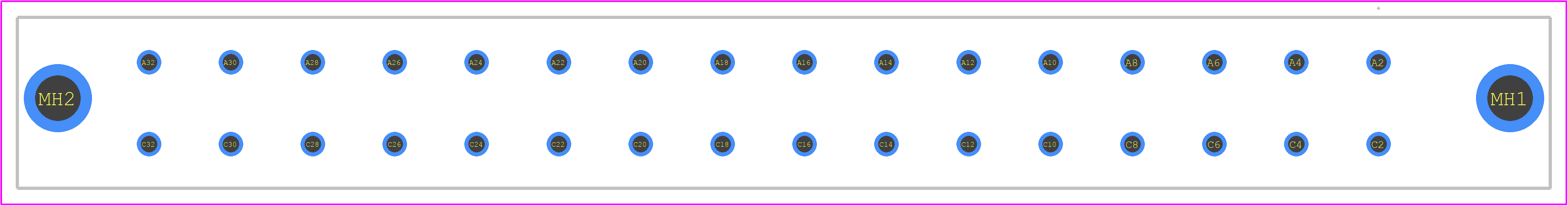

- Footprint Name Other - 104-40016-4
- Released Date Jul 5, 2022
- Last Modified Date May 4, 2023 8:13 AM UTC
- Pinout / Pin List Click Here (Member Only)
104-40016 Details
-
Manufacturer Part Number:
104-40016
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
ept Connectors
-
YTEOL:
7
-
Connector Type:
BOARD EURO CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Gender:
FEMALE
-
Contact Material:
NOT SPECIFIED
104-40016 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals of the 104-40016 connector is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
-
Yes, the 104-40016 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
-
Yes, the 104-40016 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and a humidity rating of 95% RH (according to IEC 60068-2-78).
-
The 104-40016 connector has a mating cycle life of at least 500 cycles, ensuring reliable connections even in applications with frequent mating and unmating.
-
Yes, the 104-40016 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.
Trust Checks
Community Provided
System Verified
Community Approved
104-40016 Overview

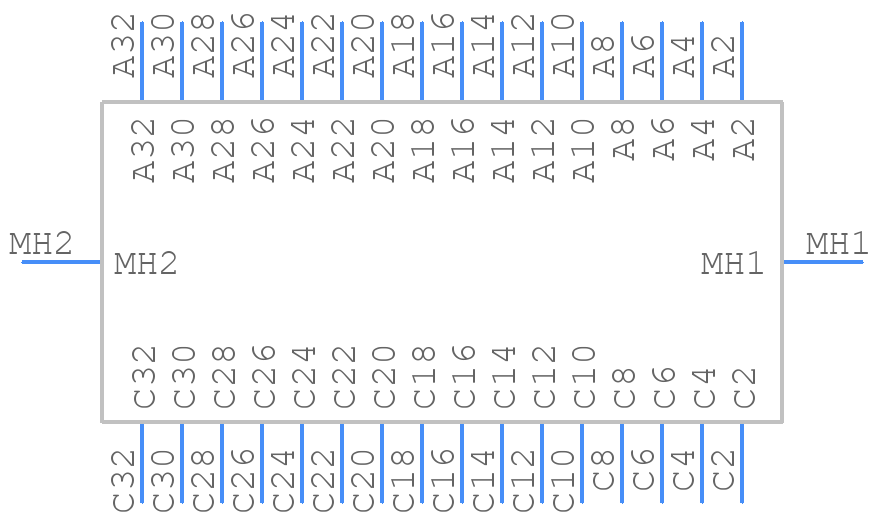

Use the download button to access the 104-40016 schematic symbol, PCB footprint, and 3D model.
