Description:Circuit Breakers Miniaturised single pole thermal circuit breaker with push-to-reset tease free, trip-free, snap action mechanism (R-type TO CBE to EN 60934) for PCB mounting. Approved to CBE standard EN 60934 (IEC 60934). For higher current ratings see type 1140.
The recommended torque for the terminals is 0.5 Nm to 1.5 Nm, as specified in the E-T-A application notes.
Yes, the 104-PR-10A is designed to withstand high-vibration environments, but it's recommended to follow E-T-A's guidelines for vibration-resistant mounting and wiring.
To ensure reliable connections, use the recommended wire sizes, strip lengths, and torque values, and follow E-T-A's guidelines for wire preparation and connection procedures.
The 104-PR-10A is not certified for use in hazardous locations. If you need a relay for hazardous locations, consider E-T-A's explosion-proof relay series.
The expected lifespan of the 104-PR-10A is dependent on various factors, including operating conditions, load, and maintenance. E-T-A estimates a lifespan of 10,000 to 50,000 cycles, depending on the application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
104-PR-10A Overview

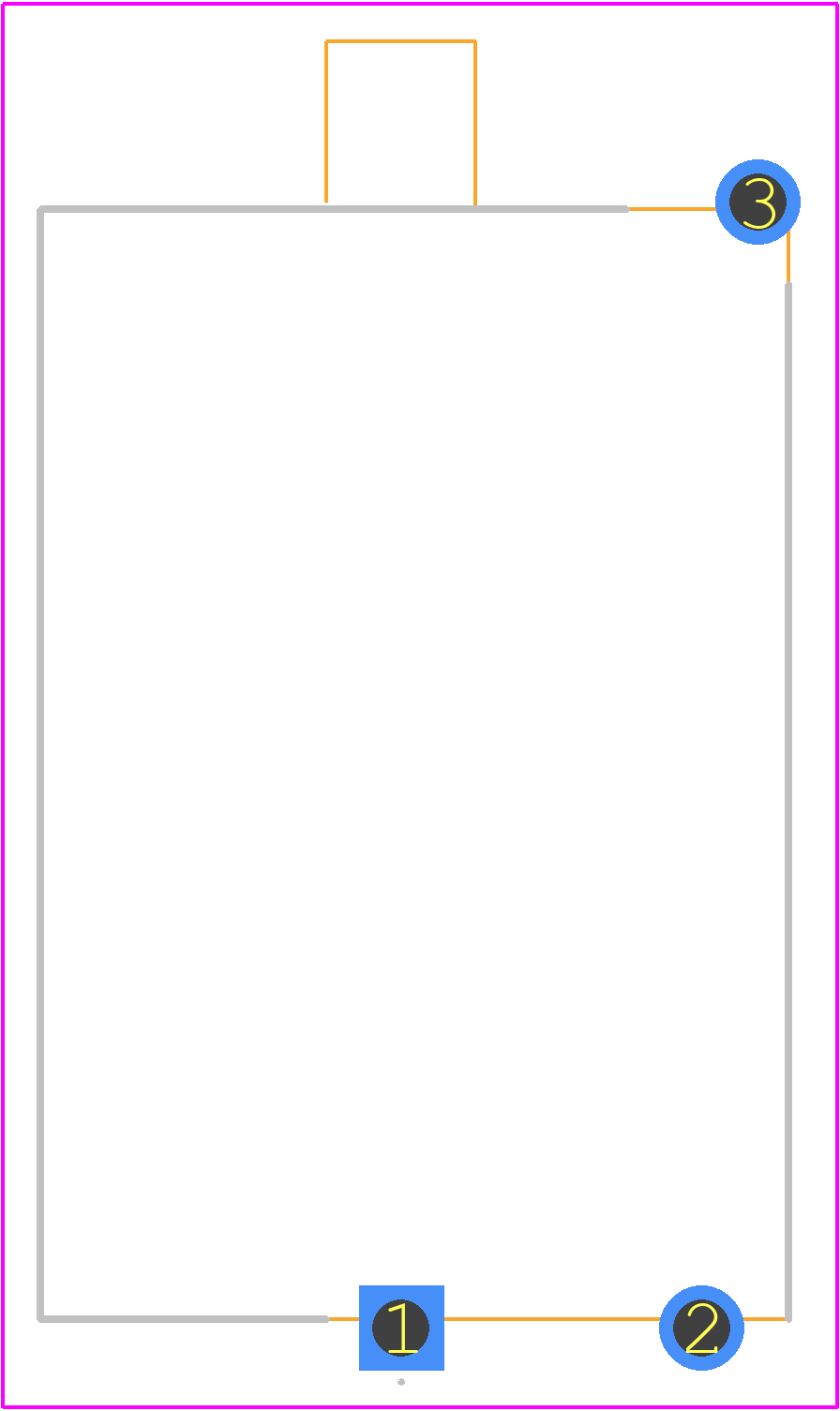

Use the download button to access the 104-PR-10A schematic symbol and PCB footprint.
