- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 104118-0811
- Part Number 104118-0811
- Manufacturer Molex
- Pin Count 16
- Part Category Connector
- Package Category Other
- Footprint Name Other - 104118-0811-5
- Released Date Aug 3, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
104118-0811 Details
-
Manufacturer Part Number:
104118-0811
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Molex
-
YTEOL:
0
-
Connector Type:
PCB CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Material:
NOT SPECIFIED
104118-0811 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
-
Yes, the 104118-0811 is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
-
The operating temperature range for the 104118-0811 is -40°C to 125°C (-40°F to 257°F).
-
Yes, the 104118-0811 is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
-
The 104118-0811 has a mating cycle life of 500 cycles minimum.
Trust Checks
Community Provided
System Verified
Community Approved
104118-0811 Overview

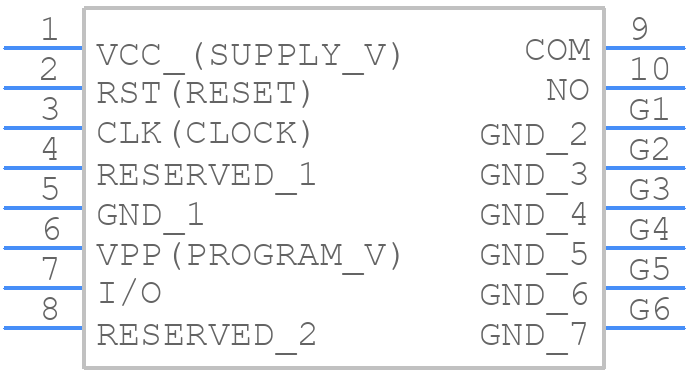

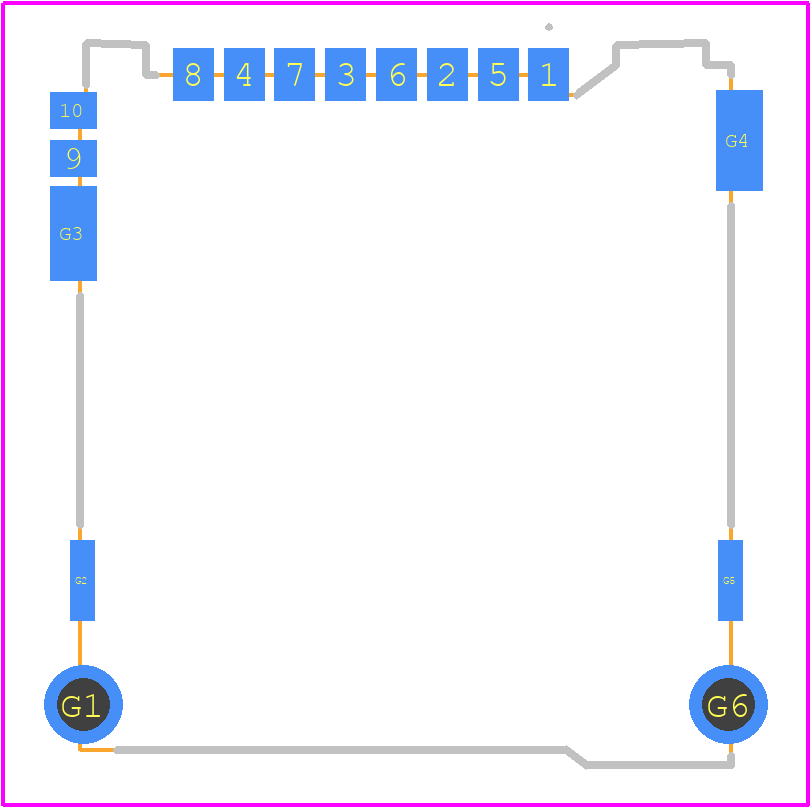

Use the download button to access the 104118-0811 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10411,
or try a keyword search, such as Headers and Edge Type Connectors
