105-1102-001 - Cinch Connectivity Solutions

Description: JOHNSON - CINCH CONNECTIVITY - 105-1102-001 - TEST JACK, HORIZONTAL, 5A, RED

Download 105-1102-001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
105-1102-001 - Cinch Connectivity Solutions - PCB symbol
click to zoom
PCB Footprints

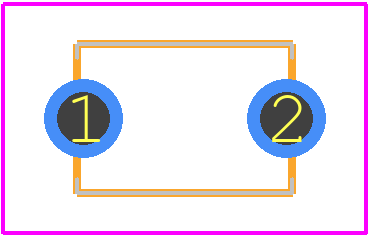

105-1102-001 - Cinch Connectivity Solutions PCB footprint - Other - Other - 105-1102-001-1
click to zoom
3D Models
105-1102-001 - Cinch Connectivity Solutions - 3D model - Other - 105-1102-001-1
click to zoom

105-1102-001 Details

  • Manufacturer Part Number:

    105-1102-001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cinch Connectivity Solutions

  • Connector Type:

    TEST JACK

  • Contact Finish Termination:

    Silver (Ag)

  • Insulator Material:

    POLYAMIDE66

  • JESD-609 Code:

    e4
