- Part Number 105-40064
- Manufacturer ept
- Pin Count 34
- Part Category Connector
- Package Category Other
- Footprint Name Other - 105-40064-2
- Released Date Sep 25, 2021
- Last Modified Date Jun 8, 2026 7:20 PM UTC
- Pinout / Pin List Click Here (Member Only)
105-40064 Details
-
Manufacturer Part Number:
105-40064
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
ept Connectors
-
YTEOL:
7
-
Additional Feature:
STANDARDS: DIN 41612, IEC 60603-2, POLARIZED
-
Connector Type:
BOARD EURO CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
-
Contact Finish Termination:
TIN
105-40064 Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the 105-40064 connector is 0.5-0.7 Nm (5-7 in-lbs).
-
Yes, the 105-40064 connector is suitable for outdoor use, as it has an IP67 rating, which means it is protected against dust and water ingress.
-
Yes, the 105-40064 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G.
-
The operating temperature range of the 105-40064 connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the 105-40064 connector is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations.
Trust Checks
Community Provided
System Verified
Community Approved
105-40064 Overview

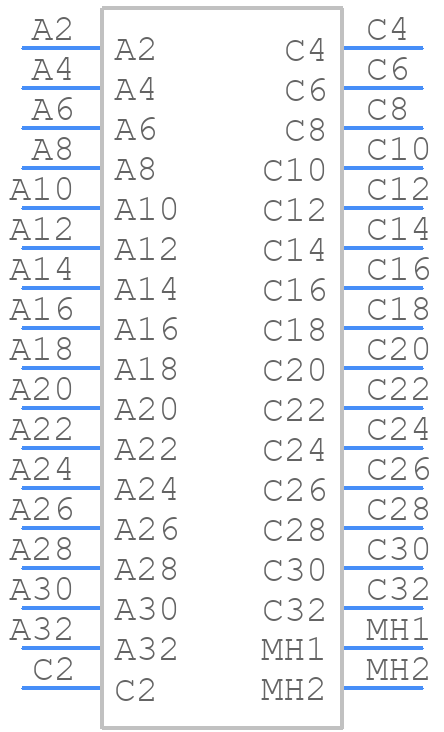

Use the download button to access the 105-40064 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 105-4,
