- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1050281001
- Part Number 1050281001
- Manufacturer Molex
- Pin Count 32
- Part Category Connector
- Package Category Other
- Footprint Name Other - 105028-1001
- Released Date Jun 6, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1050281001 Details
-
Manufacturer Part Number:
1050281001
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
Molex
-
Additional Feature:
STANDARD: UL 94V-0
-
Contact Finish Mating:
NOT APPLICABLE
-
Contact Finish Termination:
Gold (Au)
1050281001 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
-
Yes, the 1050281001 connector is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
-
The operating temperature range for the 1050281001 connector is -40°C to 125°C (-40°F to 257°F).
-
Yes, the 1050281001 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
-
The 1050281001 connector has a mating cycle life of 500 cycles minimum.
Trust Checks
Expert Contribution
System Verified
Community Approved
1050281001 Overview

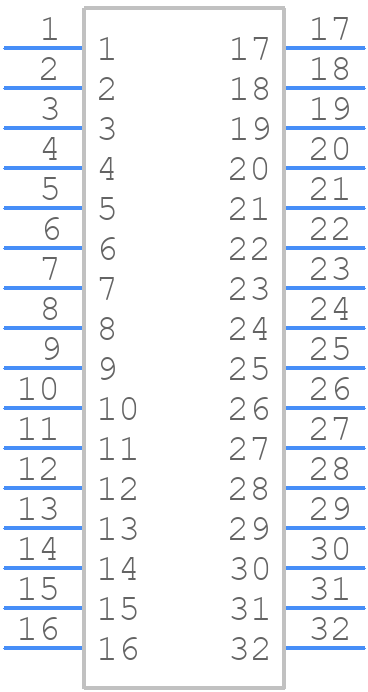

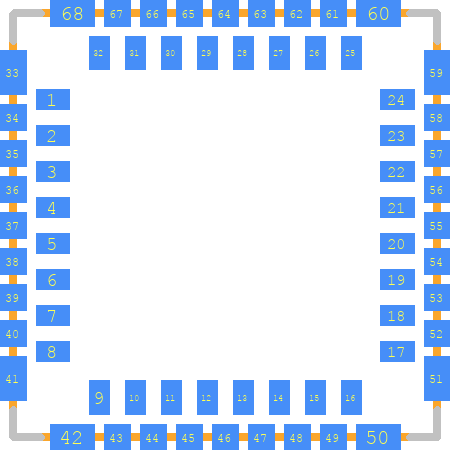

Use the download button to access the 1050281001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10502,
or try a keyword search, such as Sockets and Chip Carriers
About Molex
Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
