105310-1308 - Molex

Description: MOLEX - 105310-1308 - Wire-To-Board Connector, 2.5 mm, 8 Contacts, Header, Nano-Fit 105310 Series, Through Hole, 2 Rows

Download 105310-1308 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
105310-1308 - Molex - PCB symbol
click to zoom
PCB Footprints

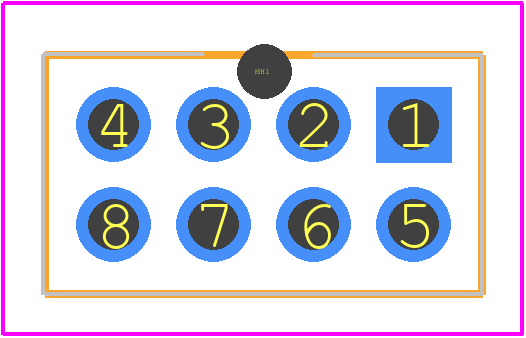

105310-1308 - Molex PCB footprint - Other - Other - 105310-1308-2
click to zoom
3D Models
105310-1308 - Molex - 3D model - Other - 105310-1308-2
click to zoom

105310-1308 Details

  • Manufacturer Part Number:

    105310-1308

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

105310-1308 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 105310-1308 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 105310-1308 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 105310-1308 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 105310-1308 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.
