105310-1314 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 105310-1314 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental use?
  The 105310-1314 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper protection and sealing. It's essential to follow Molex's guidelines for environmental sealing and protection to ensure reliability.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 105310-1314 connector. However, it's crucial to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.

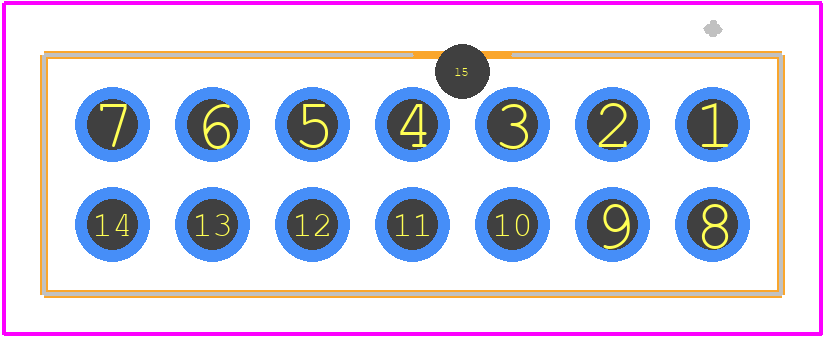

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow Molex's recommended PCB layout guidelines for the 105310-1314 connector to ensure proper mating and unmating. This includes maintaining a minimum clearance of 1.5 mm between the connector and other components, and ensuring the PCB is designed to accommodate the connector's footprint.
