1053102114 - Molex

Description: Nano-Fit Vertical Header, Through Hole, 2.50mm Pitch, Dual Row, 14 Circuits, with Kinked Pins, Tin (Sn) Plating, Natural, Glow-Wire Capable, Tray

Download 1053102114 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1053102114 - Molex - PCB symbol
click to zoom

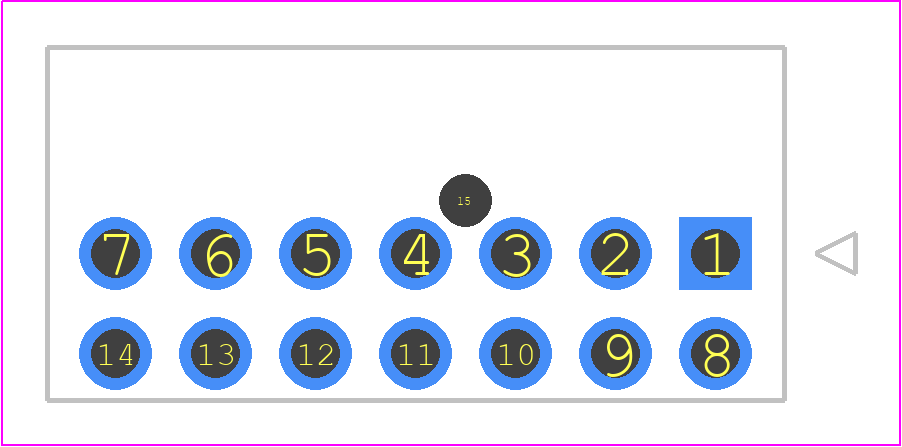

PCB Footprints
1053102114 - Molex PCB footprint - Other - Other - 105310YY14_4
click to zoom
3D Models
1053102114 - Molex - 3D model - Other - 105310YY14_4
click to zoom

1053102114 Details

  • Manufacturer Part Number:

    1053102114

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER):7.5A

  • Body Breadth:

    0.348 inch

  • Body Depth:

    0.414 inch

  • Body Length:

    0.726 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    CSA; UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

1053102114 Frequently Asked Questions (FAQs)

  • The recommended torque for securing the screw terminals is typically between 0.5-1.5 Nm (7-21 in-lbs). However, it's best to refer to the specific application requirements and Molex's recommendations.
  • The 105310-2114 connector is designed to meet the requirements of various industries, including automotive and industrial. It's suitable for use in high-vibration environments, but it's essential to ensure proper mounting and wiring to prevent damage or disconnection.
  • The operating temperature range for the 105310-2114 connector is typically between -40°C to 105°C (-40°F to 221°F). However, it's crucial to check the specific application requirements and Molex's recommendations for the connector's temperature range.
  • The 105310-2114 connector is designed to meet the requirements of various industries, including automotive and industrial. While it's suitable for use in harsh environments, it's essential to ensure proper sealing and protection to prevent damage or corrosion. Consult Molex's recommendations for specific environmental requirements.
  • The 105310-2114 connector is designed to accommodate specific wire gauges and types. Consult the datasheet and Molex's recommendations for compatible wire gauges and types to ensure proper connection and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1053102114 Overview

Use the download button to access the 1053102114 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10531, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
