1053102214 - Molex

1053102214 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the 105310-2214 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environment applications?
  The 105310-2214 connector has a rating of IP67, which means it can withstand temporary immersion in water and is suitable for outdoor or harsh environment applications. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the datasheet recommends AWG 20-24 wire sizes, it's possible to use other wire sizes with the 105310-2214 connector. However, it's crucial to ensure the wire size is compatible with the connector's current rating and that the wire is properly secured to prevent damage or disconnection.

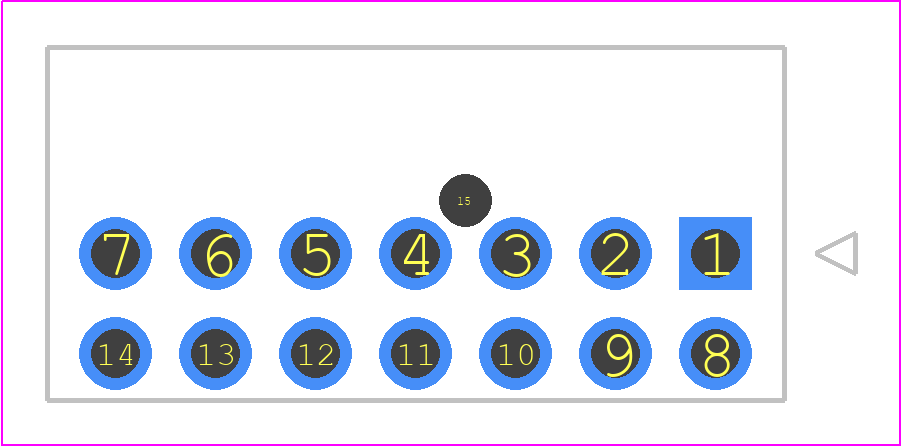

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow proper PCB layout guidelines for the 105310-2214 connector to ensure reliable connections and prevent damage. The datasheet provides recommended PCB layout dimensions and guidelines, which should be followed carefully.
