105313-1306 - Molex

Description: Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)

Download 105313-1306 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
105313-1306 - Molex - PCB symbol
click to zoom
PCB Footprints

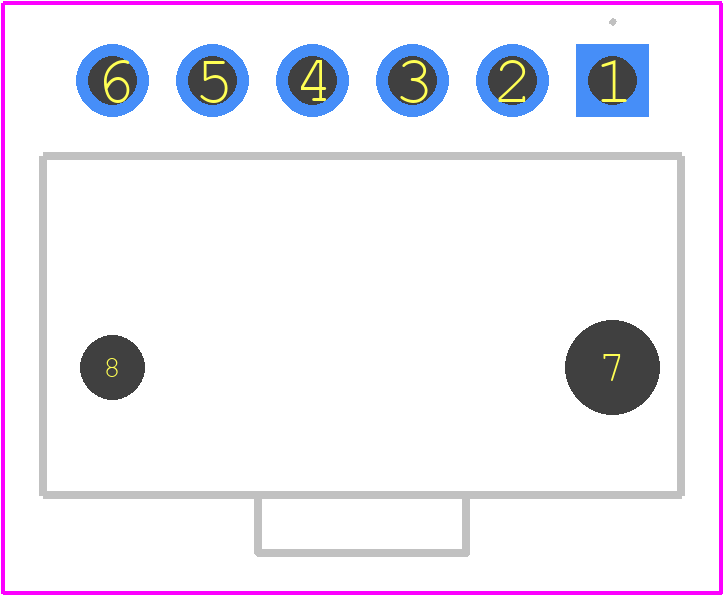

105313-1306 - Molex PCB footprint - Other - Other - 105313-1306-2
click to zoom
3D Models
105313-1306 - Molex - 3D model - Other - 105313-1306-2
click to zoom

105313-1306 Details

  • Manufacturer Part Number:

    105313-1306

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

105313-1306 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 105313-1306 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications.
  • The operating temperature range for the 105313-1306 connector is -40°C to 105°C (-40°F to 221°F), making it suitable for use in a wide range of environments.
  • Yes, the 105313-1306 connector is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
  • The recommended wire size for the 105313-1306 connector is 24-20 AWG (0.25-0.5 mm²) to ensure reliable connections and minimize wire damage.
