105314-1210 - Molex

Description: Conn Wire to Board HDR 10 POS 2.5mm Solder RA Thru-Hole Nano-Fit™ Tray

Download 105314-1210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
105314-1210 - Molex - PCB symbol
click to zoom
PCB Footprints

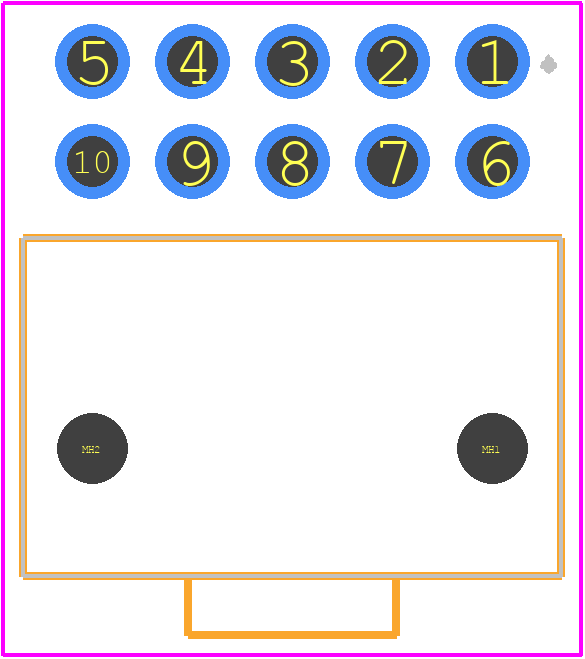

105314-1210 - Molex PCB footprint - Other - Other - 105314-1210-1
click to zoom
3D Models
105314-1210 - Molex - 3D model - Other - 105314-1210-1
click to zoom

105314-1210 Details

  • Manufacturer Part Number:

    105314-1210

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

105314-1210 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 105314-1210 is designed to withstand vibrations up to 10G (ISO 16750-3) and is suitable for use in high-vibration environments.
  • The operating temperature range for the 105314-1210 is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 105314-1210 is designed for automated assembly and can be used with pick-and-place machines and other automated assembly equipment.
  • The 105314-1210 has a mating cycle life of 500 cycles minimum.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

105314-1210 Overview

Use the download button to access the 105314-1210 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10531, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
