1053141212 - Molex

Description: Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Dual Row, 12 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable, Tray

Download 1053141212 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1053141212 - Molex - PCB symbol
click to zoom
PCB Footprints

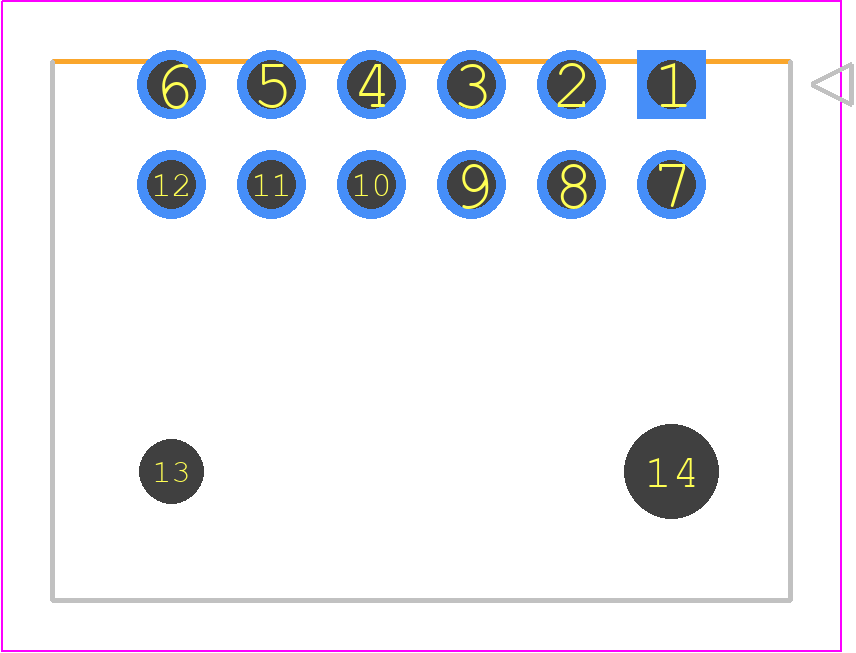

1053141212 - Molex PCB footprint - Other - Other - 105314YY12
click to zoom
3D Models
1053141212 - Molex - 3D model - Other - 105314YY12
click to zoom

1053141212 Details

  • Manufacturer Part Number:

    1053141212

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

1053141212 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 105314-1212 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 105314-1212 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 105314-1212 connector is designed for automated assembly and can be used with pick-and-place machines.
  • The recommended wire size for the 105314-1212 connector is 24-20 AWG (0.25-0.5 mm²).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1053141212 Overview

Use the download button to access the 1053141212 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10531, or try a keyword search, such as Power Connectors
