1053141216 - Molex

Description: Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Dual Row, 16 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable, Tray

Download 1053141216 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1053141216 - Molex - PCB symbol
click to zoom
PCB Footprints

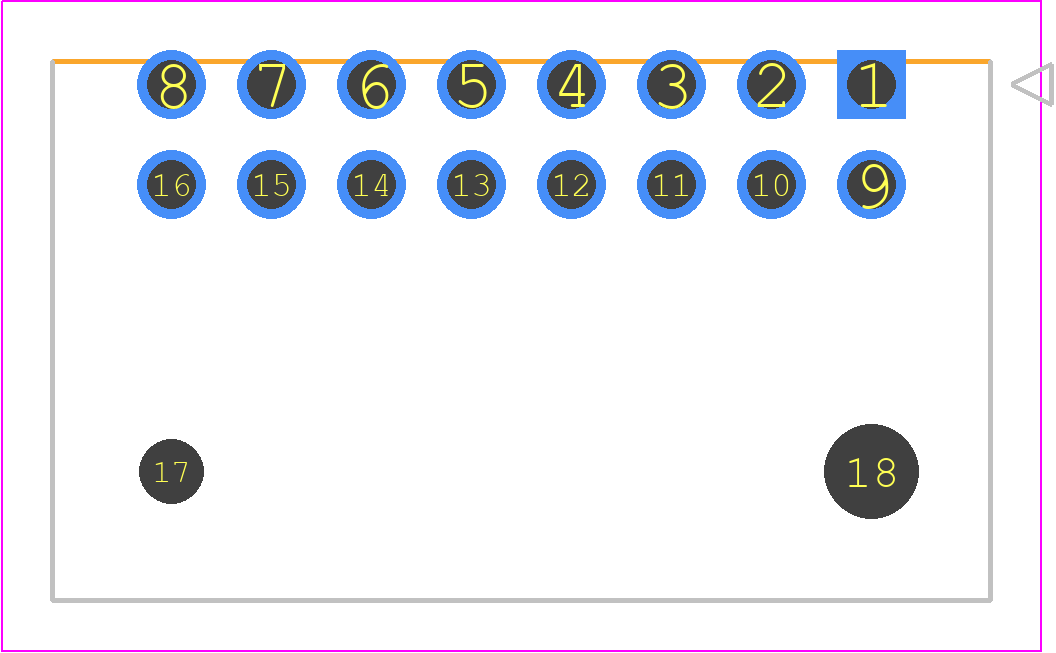

1053141216 - Molex PCB footprint - Other - Other - 105314YY16
click to zoom
3D Models
1053141216 - Molex - 3D model - Other - 105314YY16
click to zoom

1053141216 Details

  • Manufacturer Part Number:

    1053141216

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    7

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

1053141216 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 105314-1216 is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The operating temperature range for the 105314-1216 is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 105314-1216 is designed for outdoor use and can withstand exposure to moisture and humidity.
  • No, the 105314-1216 is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a secure connection.
