1054291212 - Molex

1054291212 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
• Can I use this connector in high-vibration applications?
  Yes, the Molex 1054291212 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz). However, it's crucial to ensure proper mounting and secure the connector to the PCB or chassis to prevent damage or disconnection.
• Is this connector suitable for outdoor or harsh environmental applications?
  The Molex 1054291212 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's essential to consider additional protection measures, such as conformal coating or potting, to ensure reliability in harsh environments.
• Can I use this connector with wire sizes other than AWG 20-24?
  While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's essential to consult with Molex or a qualified engineer to ensure the connector can handle the desired wire size and meet the required electrical and mechanical specifications.

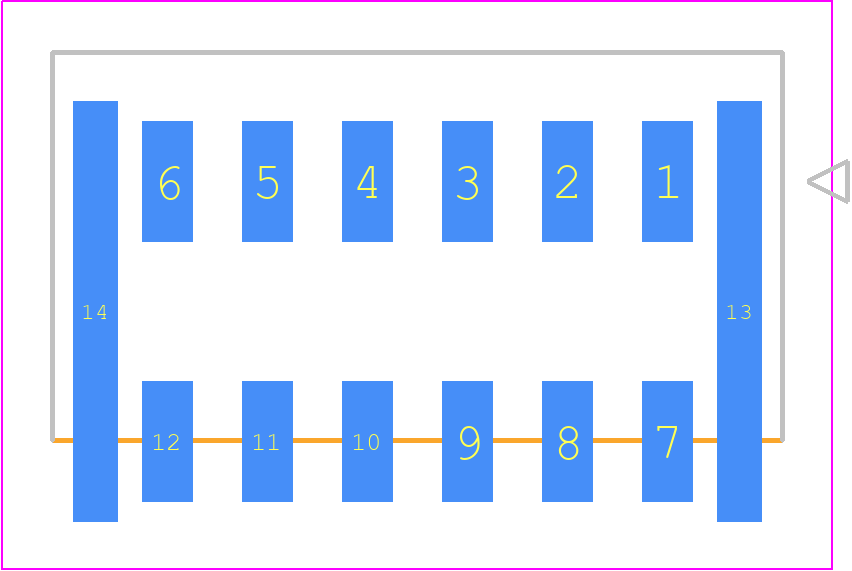

• Are there any specific PCB layout considerations for this connector?
  Yes, the Molex 1054291212 connector requires a specific PCB layout to ensure proper mating and unmating. It's essential to follow the recommended PCB footprint and layout guidelines provided by Molex to prevent damage to the connector or PCB.
