1054291214 - Molex

Description: Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Dual Row, 14 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable

Download 1054291214 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1054291214 - Molex - PCB symbol
click to zoom
PCB Footprints

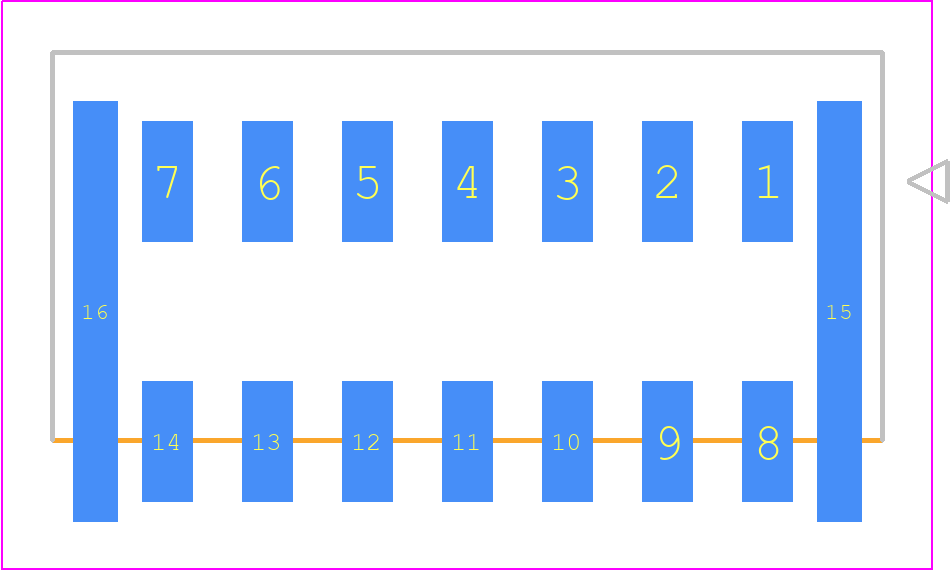

1054291214 - Molex PCB footprint - Other - Other - 105429YY14
click to zoom
3D Models
1054291214 - Molex - 3D model - Other - 105429YY14
click to zoom

1054291214 Details

  • Manufacturer Part Number:

    1054291214

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Additional Feature:

    RATED CURRENT(POWER): 7A, POLARIZED

  • Body Breadth:

    0.235 inch

  • Body Depth:

    0.382 inch

  • Body Length:

    0.816 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    14

  • UL Flammability Code:

    94V-0

1054291214 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.2 in-lbs).
  • Yes, the 1054291214 connector is designed to withstand high-vibration environments, making it suitable for industrial, automotive, and other applications where vibration is a concern.
  • The operating temperature range for the 1054291214 connector is -40°C to 105°C (-40°F to 221°F). While it can withstand high temperatures, it's essential to ensure the connector is not exposed to temperatures above the recommended range to maintain its performance and reliability.
  • The 1054291214 connector has an IP67 rating, which means it is dust-tight and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
  • Yes, the 1054291214 connector is suitable for power applications, with a current rating of up to 10A per contact. However, it's essential to ensure the connector is used within its rated specifications to avoid overheating or damage.
