1054546 - Phoenix Contact

Description: PC 6/ 2-G-7,62 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 41 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PC 6/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 6, Pin connector pattern alignment: Stand

Download 1054546 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1054546 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

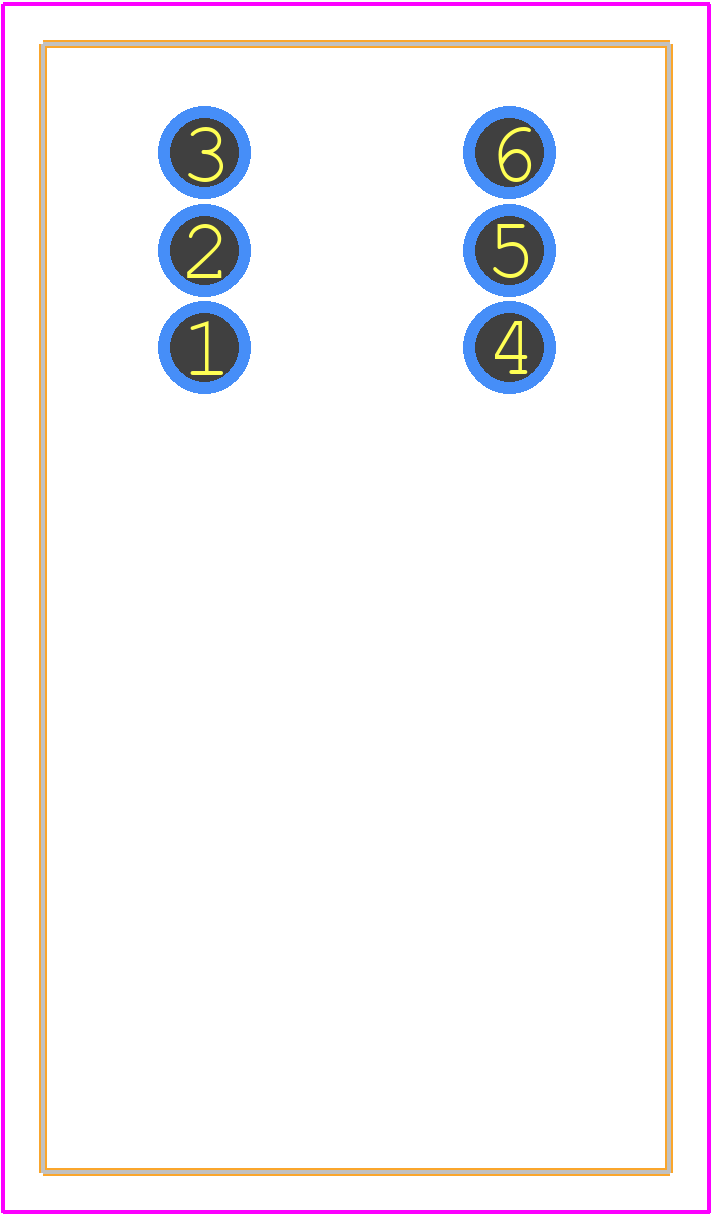

1054546 - Phoenix Contact PCB footprint - Other - Other - 1054546-3
click to zoom
3D Models
1054546 - Phoenix Contact - 3D model - Other - 1054546-3
click to zoom

1054546 Details

  • Manufacturer Part Number:

    1054546

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    41 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    CUL; EAC; UL; VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1054546 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact application notes.
  • Yes, the 1054546 connector is designed to withstand high-vibration environments, with a vibration resistance of 10 g (according to IEC 60068-2-6).
  • Yes, the 1054546 connector is rated IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • The maximum wire size that can be used with the 1054546 connector is 1.5 mm² (AWG 16).
  • The 1054546 connector is rated for operation in temperatures ranging from -40°C to +125°C, making it suitable for high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1054546 Overview

Use the download button to access the 1054546 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10545, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
