106MWR100K footprint, schematic symbol and 3D model by ILLINOIS CAPACITOR

Symbol

click to zoom

PCB Footprints

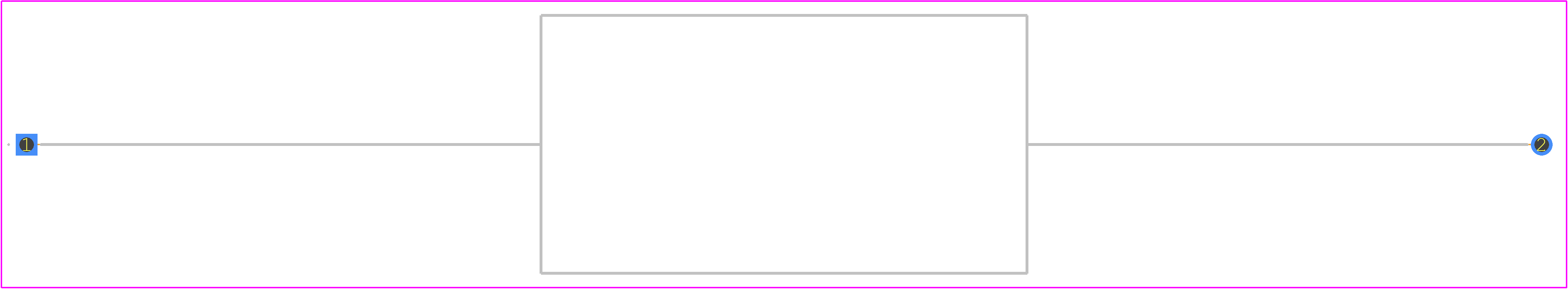

106MWR100K - ILLINOIS CAPACITOR PCB footprint - Other - Other - 18mm x 34mm_2024

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 106MWR100K
Part Number 106MWR100K
Manufacturer ILLINOIS CAPACITOR
Pin Count 2
Part Category Capacitor
Package Category Other
Footprint Name Other - 18mm x 34mm_2024
Released Date Sep 17, 2024
Last Modified Date Sep 17, 2024 7:24 AM UTC
Pinout / Pin List Click Here (Member Only)

106MWR100K Details

Manufacturer Part Number:
106MWR100K
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
AXIAL LEADED, LEAD FREE
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8532.25.00.60
Manufacturer:
Illinois Capacitor Inc
Additional Feature:
RATED AC VOLTAGE(V): 63
Capacitance:
10 µF
Capacitor Type:
FILM CAPACITOR
Custom Capabilities:
Tape & Reel, 5% Capacitance Tolerance
Dielectric Material:
POLYESTER
JESD-609 Code:
e3
Mounting Feature:
THROUGH HOLE MOUNT
Negative Tolerance:
10%
Number of Terminals:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Package Shape:
TUBULAR PACKAGE
Package Style:
Axial
Positive Tolerance:
10%
Rated (AC) Voltage (URac):
63 V
Rated (DC) Voltage (URdc):
100 V
Surface Mount:
NO
Terminal Finish:
Matte Tin (Sn)
Terminal Shape:
WIRE

106MWR100K Frequently Asked Questions (FAQs)

The recommended soldering temperature for the 106MWR100K is between 250°C to 260°C for a maximum of 5 seconds.
Yes, the 106MWR100K capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
The derating curve for the 106MWR100K capacitor is typically provided by the manufacturer upon request. It shows the reduction in capacitance value as a function of temperature and voltage.
Yes, the 106MWR100K capacitor is designed to withstand high-vibration environments, but it's recommended to consult with the manufacturer for specific vibration testing and validation.
The ESR of the 106MWR100K capacitor is typically around 10-20 ohms, but this value can vary depending on the frequency and operating conditions.
