107-2-A-24/2D - Pickering

Description: Pickering Series 107 reed relay 107-2-A-24/2D: 2 Form A - DPST N.O.; Low Level Dry Reed; 0.5A, 10W, 200V switching, 220V stand-off; 24V coil, 3000 Ω; diode fitted; 4.8×19.1×10.2mm. Industries: precision instrumentation, ATE, semiconductor test, medical devices.

Download 107-2-A-24/2D Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 107-2-A-24/2D model

Email notifications will be applied after download.

Send part feedback

Symbol

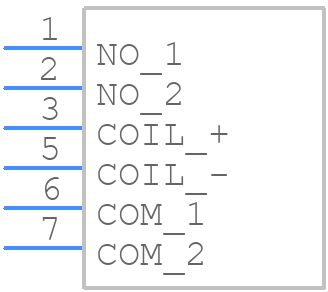

107-2-A-24/2D - Pickering - PCB symbol

PCB Footprints

107-2-A-24/2D - Pickering PCB footprint - Other - Other - 107-2-A-24/2D-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 107-2-A-24/2D
Part Number 107-2-A-24/2D
Manufacturer Pickering
Pin Count 6
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - 107-2-A-24/2D-2
Released Date Jun 20, 2024
Last Modified Date Jul 13, 2026 10:37 AM UTC
Pinout / Pin List Click Here (Member Only)

107-2-A-24/2D Details

Manufacturer Part Number:
107-2-A-24/2D
Manufacturer:
Pickering Interfaces Ltd

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

107-2-A-24/2D Overview

Use the download button to access the 107-2-A-24/2D schematic symbol and PCB footprint.
