1071001 - Phoenix Contact

1071001 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the PCB manufacturer's guidelines and Phoenix Contact's application notes for specific torque recommendations.
• Can I use this connector in high-vibration or high-shock environments?
  Yes, the 1071001 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screwing to prevent damage. Phoenix Contact provides guidelines for vibration and shock testing in their application notes and technical support resources.
• Is the connector suitable for use in humid or wet environments?
  The 1071001 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using connectors with higher IP ratings, such as IP67 or IP69K, or applying additional sealing measures.
• Can I use this connector with wire sizes other than the recommended AWG 24-16?
  While the 1071001 connector is designed for AWG 24-16 wires, it's possible to use it with other wire sizes. However, this may affect the connector's performance and reliability. Consult Phoenix Contact's technical support or application notes for guidance on using alternative wire sizes.

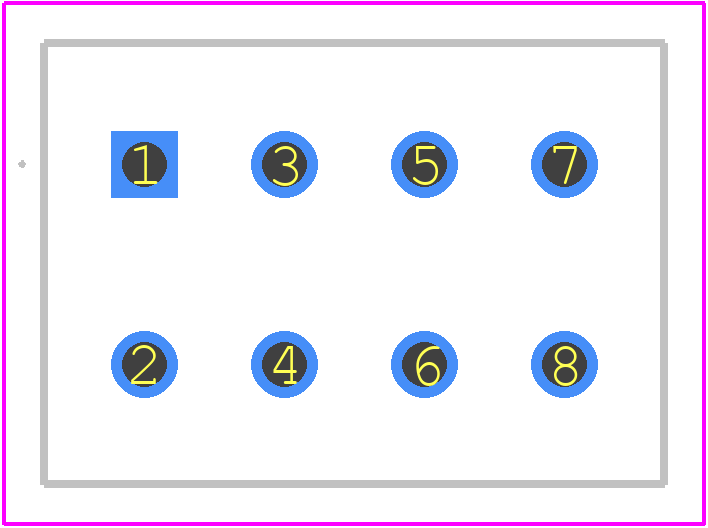

• Are there any specific PCB layout considerations for this connector?
  Yes, Phoenix Contact provides guidelines for PCB layout and design to ensure proper connector functionality and reliability. These guidelines include recommendations for pad size, spacing, and orientation. Consult the datasheet and application notes for specific guidance.
