1071068 - Phoenix Contact

Description: SPTAF 1/ 4-5,0-IL-EX - Printed circuit board terminal, nominal current: 16 A, nominal cross section: 1.5 mm<sup>2</sup>, number of rows: 1, number of positions per row: 4, product range: SPTAF 1/..-IL-EX, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: Tray. Suitable for CAT5

Download 1071068 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1071068 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

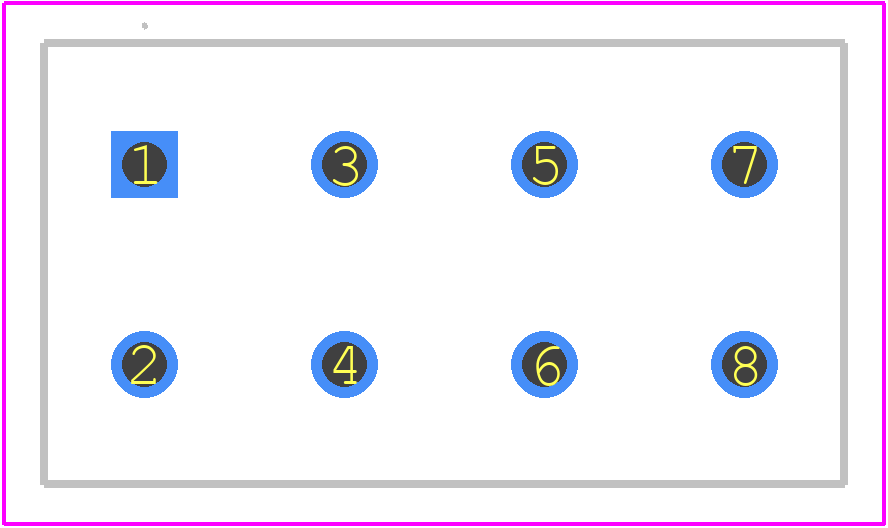

1071068 - Phoenix Contact PCB footprint - Other - Other - 1071068-2
click to zoom
3D Models
1071068 - Phoenix Contact - 3D model - Other - 1071068-2
click to zoom

1071068 Details

  • Manufacturer Part Number:

    1071068

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1071068 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 1071068 connector onto a panel is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's technical manual.
  • The 1071068 connector has a IP67 rating, which means it is protected against dust and temporary immersion in water, making it suitable for outdoor use in harsh environments.
  • While the datasheet specifies a wire gauge range of 0.5 mm² to 2.5 mm², it is possible to use a different wire gauge with the 1071068 connector. However, it is recommended to consult with Phoenix Contact's technical support to ensure compatibility and to determine any potential derating of the connector's performance.
  • To ensure proper mating of the 1071068 connector with the receptacle, make sure to align the connector's keyway with the receptacle's keyway, and then insert the connector until it clicks into place. Apply gentle pressure to ensure a secure connection.
  • The 1071068 connector is part of Phoenix Contact's COMBI connector series, which is designed to be compatible with other COMBI connectors. However, it is recommended to consult the datasheet and technical manual to ensure compatibility with specific connectors and applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1071068 Overview

Use the download button to access the 1071068 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10710, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
