1077166 - Phoenix Contact

Description: PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm?, Number of rows: 3, Number of positions per row: 2, product range: MK3DS 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 ?, color: gray, Pin layout: Linear pinning, Solder pin [P]: 5 mm, type of packaging: packed in cardboard

Download 1077166 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1077166 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

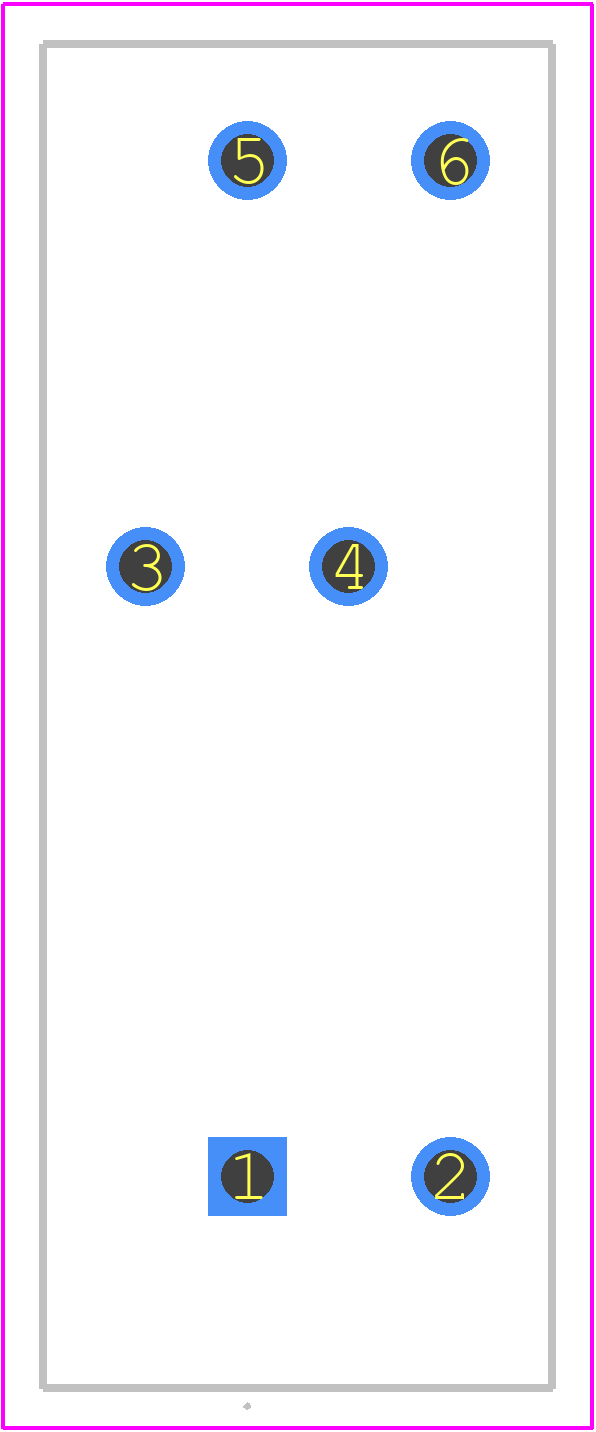

1077166 - Phoenix Contact PCB footprint - Other - Other - 1077166-1
