- Part Number 107B
- Manufacturer Hammond Manufacturing
- Pin Count 6
- Part Category Transformer
- Package Category Other
- Footprint Name Other - 107B-2
- Released Date Oct 7, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
107B Details
-
Manufacturer Part Number:
107B
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
RADIAL LEADED
-
Country Of Origin:
Canada
-
ECCN Code:
EAR99
-
Manufacturer:
Hammond Manufacturing
-
YTEOL:
6
-
Application:
AUDIO; ISOLATION; LINE MATCHING
-
Height:
16.002 mm
-
Length:
16.002 mm
107B Frequently Asked Questions (FAQs)
-
The recommended torque for the screws on the 107B is 10-12 in-lbs (1.1-1.4 Nm).
-
Yes, the 107B is designed to withstand high-vibration environments. However, it's recommended to follow the mounting instructions and ensure the enclosure is properly secured to prevent damage.
-
The 107B is not designed for outdoor use and should be used in a dry, indoor environment. If outdoor use is required, consider using a NEMA-rated enclosure or applying additional environmental protection.
-
Yes, Hammond Manufacturing offers customization services for the 107B. Contact their customer support or a authorized distributor to discuss your specific requirements.
-
The 107B has an IP20 rating, which means it provides protection against solid objects larger than 12.5 mm and does not provide protection against water or moisture.
Trust Checks
Community Provided
System Verified
Community Approved
107B Overview

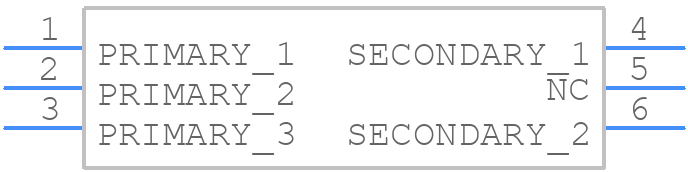

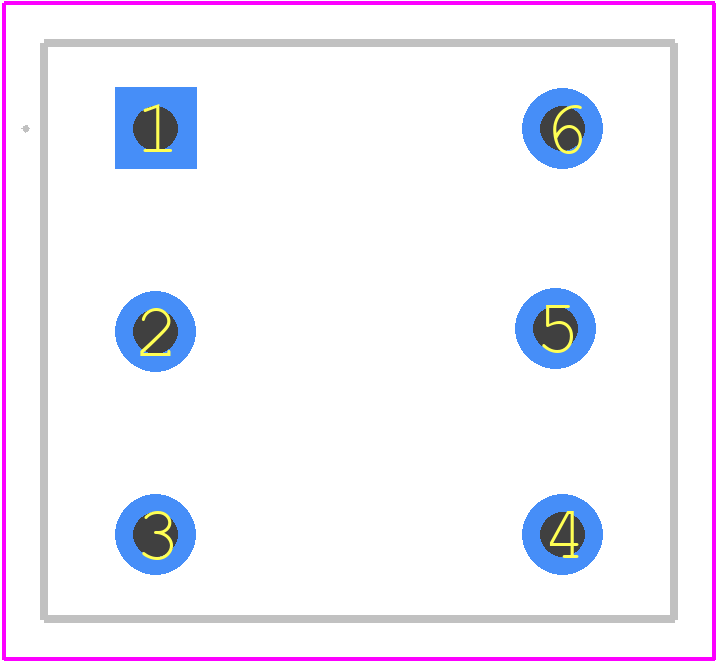

Use the download button to access the 107B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as Audio Transformers
