107N - Hammond Manufacturing

Description: Audio Transformers / Signal Transformers Audio transformer, potted, primary 10K ctohms , secondary 600 ct ohms

Download 107N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

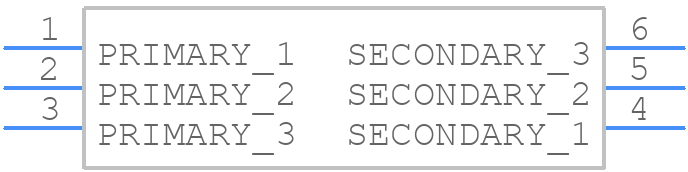

107N - Hammond Manufacturing - PCB symbol
click to zoom
PCB Footprints

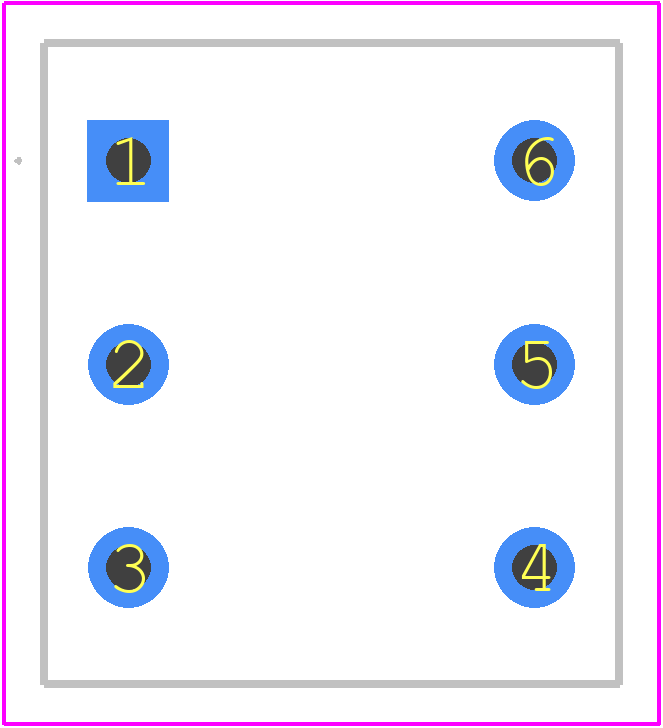

107N - Hammond Manufacturing PCB footprint - Other - Other - 107N-1
click to zoom
3D Models
107N - Hammond Manufacturing - 3D model - Other - 107N-1
click to zoom

107N Details

  • Manufacturer Part Number:

    107N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Country Of Origin:

    Canada

  • ECCN Code:

    EAR99

  • Manufacturer:

    Hammond Manufacturing

  • YTEOL:

    6

  • Application:

    AUDIO; ISOLATION; LINE MATCHING

  • Height:

    16.002 mm

  • Length:

    16.002 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Operating Frequency-Max:

    50 kHz

  • Operating Frequency-Min:

    0.3 kHz

  • Operating Temperature-Max:

    85 °C

  • Primary Impedance:

    10000 OHMS CT

  • Secondary Impedance:

    600 OHMS CT

  • Surface Mount:

    NO

  • Transformer Type:

    GENERAL PURPOSE AUDIO TRANSFORMER

  • Width:

    14.884 mm

107N Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 107N is 10-12 in-lbs (1.1-1.4 Nm).
  • Yes, the 107N is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • The 107N is not designed for outdoor use and should be used in a controlled environment with a temperature range of -20°C to 80°C (-4°F to 176°F).
  • Yes, Hammond Manufacturing offers customization options for the 107N, including custom sizes, finishes, and connector configurations. Contact their sales team for more information.
  • The typical lead time for the 107N is 2-4 weeks, depending on the quantity and customization options. Contact Hammond Manufacturing for a specific quote and lead time.
