108-40064 - ept

Description: Conn DIN 41612 F 48 POS 5.08mm Solder ST Thru-Hole Tube

Download 108-40064 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

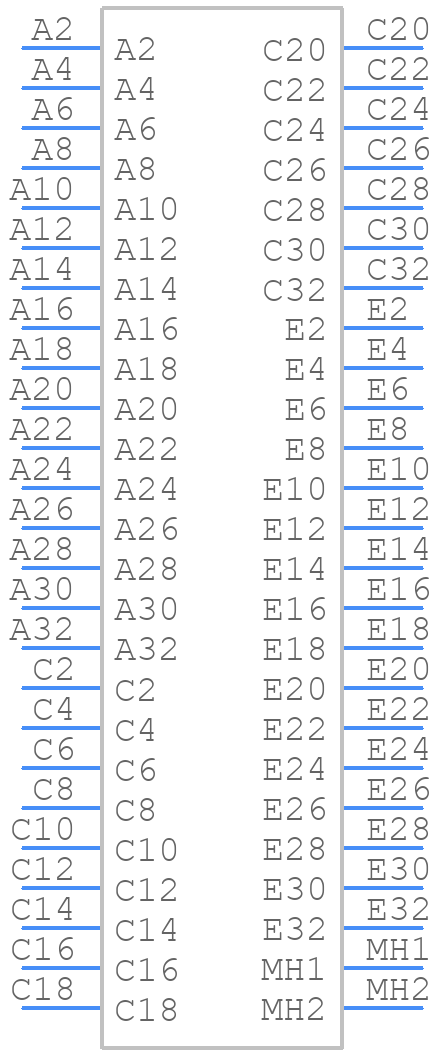

108-40064 - ept - PCB symbol
click to zoom
PCB Footprints

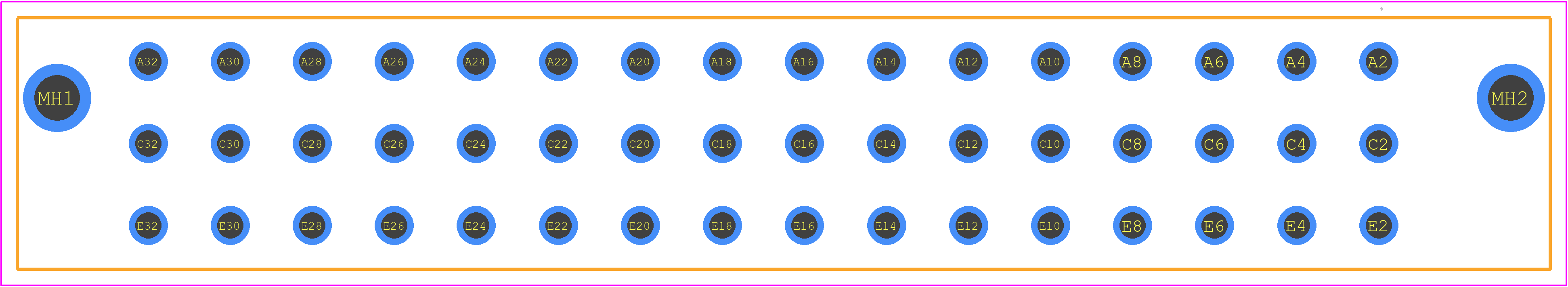

108-40064 - ept PCB footprint - Other - Other - 108-40064-2
click to zoom
3D Models
108-40064 - ept - 3D model - Other - 108-40064-2
click to zoom

108-40064 Details

  • Manufacturer Part Number:

    108-40064

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    7

  • Additional Feature:

    STANDARDS: DIN 41612; IEC 60603-2, POLARIZED

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48
