Technical Content
Part Image

1082616 - Phoenix Contact

Description: PCB headers, nominal cross section: 1.5 mm2, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, number of rows: 1, number of positions: 8, product range: MC 1,5/..-G, pitch: 3.5 mm, solder pin [P]: 2.6 mm, number of solder pins per potential: 1

Download 1082616 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1082616 - Phoenix Contact - PCB symbol
click to zoom

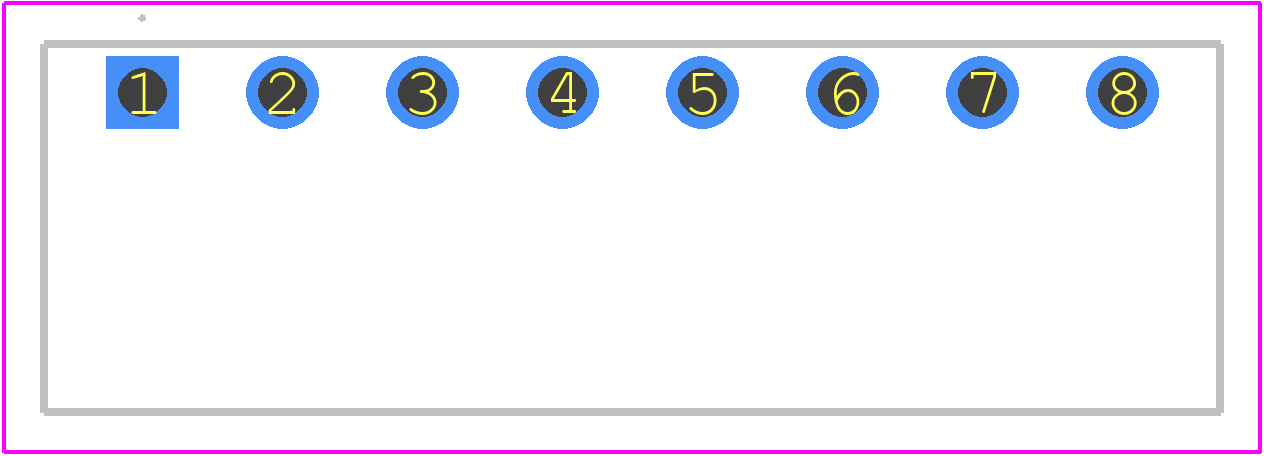

PCB Footprints
1082616 - Phoenix Contact PCB footprint - Other - Other - 1082616
click to zoom
3D Models
1082616 - Phoenix Contact - 3D model - Other - 1082616
click to zoom

1082616 Details

  • Manufacturer Part Number:

    1082616

  • Manufacturer:

    Phoenix Contact

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1082616 Overview

Use the download button to access the 1082616 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10826, or try a keyword search, such as Fixed Resistors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
