Part Image

109-40064 - ept

Description: Conn DIN 41612 F 48 POS 5.08mm Solder RA Thru-Hole Box

Download 109-40064 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

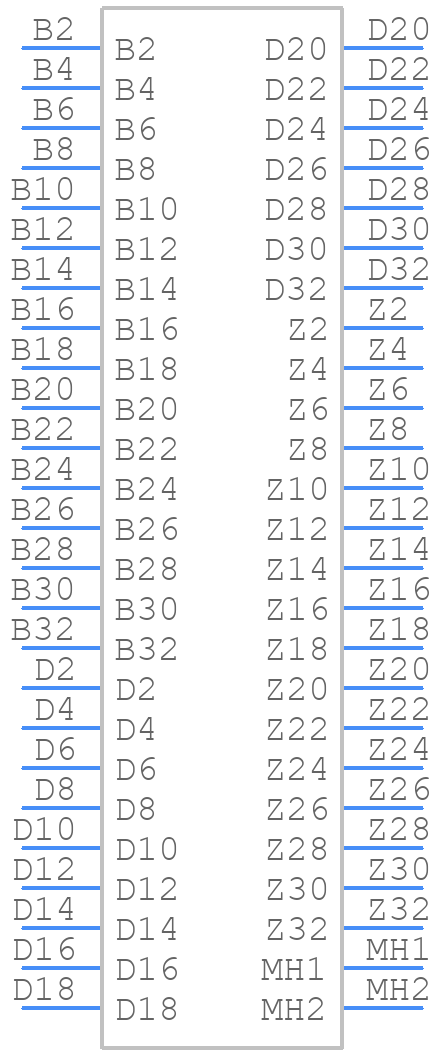

109-40064 - ept - PCB symbol
click to zoom
PCB Footprints

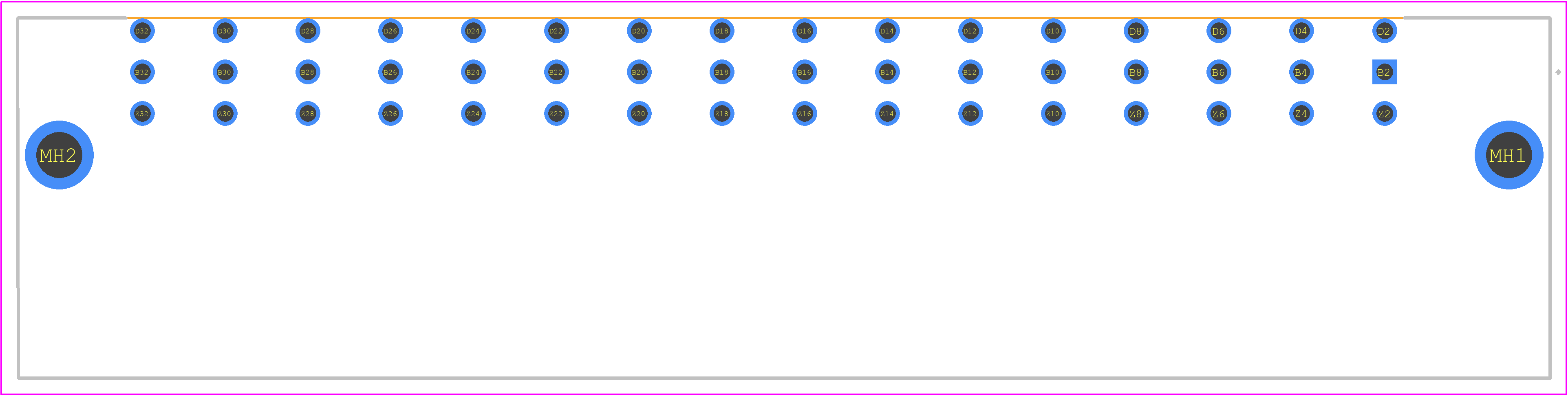

109-40064 - ept PCB footprint - Other - Other - 109-40064-2
click to zoom
3D Models
109-40064 - ept - 3D model - Other - 109-40064-2
click to zoom

109-40064 Details

  • Manufacturer Part Number:

    109-40064

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    7

  • Additional Feature:

    STANDARDS: DIN 41612; IEC 60603-2, POLARIZED

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    48

109-40064 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application and environmental conditions to determine the optimal torque value.
  • Yes, the 109-40064 connector is designed to withstand vibrations up to 10g, but it's crucial to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The 109-40064 connector has an IP67 rating, making it suitable for outdoor and harsh environmental applications, but it's essential to consider additional protection measures, such as conformal coating or potting, for extreme conditions.
  • The 109-40064 connector is rated for operation in temperatures ranging from -40°C to 125°C, but it's essential to consider derating and thermal management for high-temperature applications.
  • While the 109-40064 connector is designed for AWG 20-24 wires, it's possible to use it with other wire sizes, but it's crucial to ensure the wire gauge and insulation meet the connector's specifications and application requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

109-40064 Overview

Use the download button to access the 109-40064 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 109-4, or try a keyword search, such as Headers and Edge Type Connectors
