1091947 - Phoenix Contact

Description: CUC-IND-J1ST-S/R4LS-LED - Modular RJ45 PCB connectors, 1x1 single-port, connection direction of the connector to the PCB: 180 °, Shielded, Bicolor LED (green-yellow, green-yellow), number of positions: 8, 10 Gbps, PoE++, THT, THD, Wave, IP20

Download 1091947 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

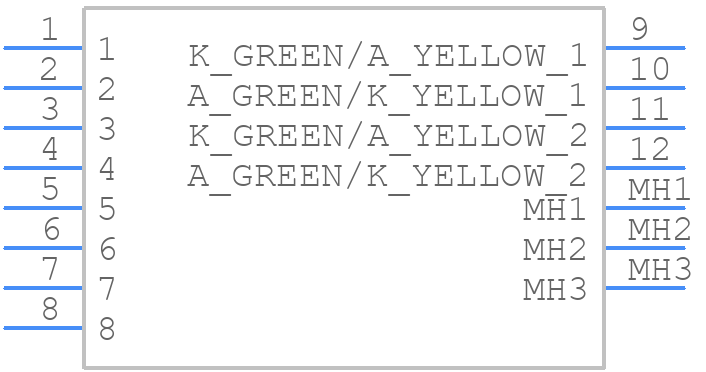

1091947 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

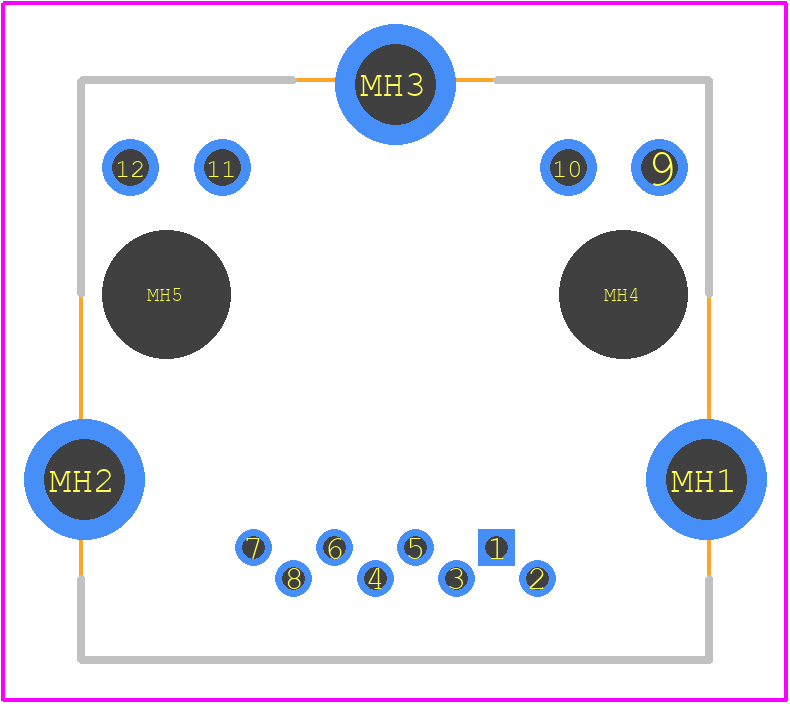

1091947 - Phoenix Contact PCB footprint - Other - Other - 1091947
click to zoom
3D Models
1091947 - Phoenix Contact - 3D model - Other - 1091947
click to zoom

1091947 Details

  • Manufacturer Part Number:

    1091947

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Phoenix Contact

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1091947 Overview

Use the download button to access the 1091947 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10919, or try a keyword search, such as Telecom and Datacom Connectors
