10A01-T - Diodes Incorporated

Description: 10A01-T, Switching Diode, 10A 50V, 2-Pin R 6

Download 10A01-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

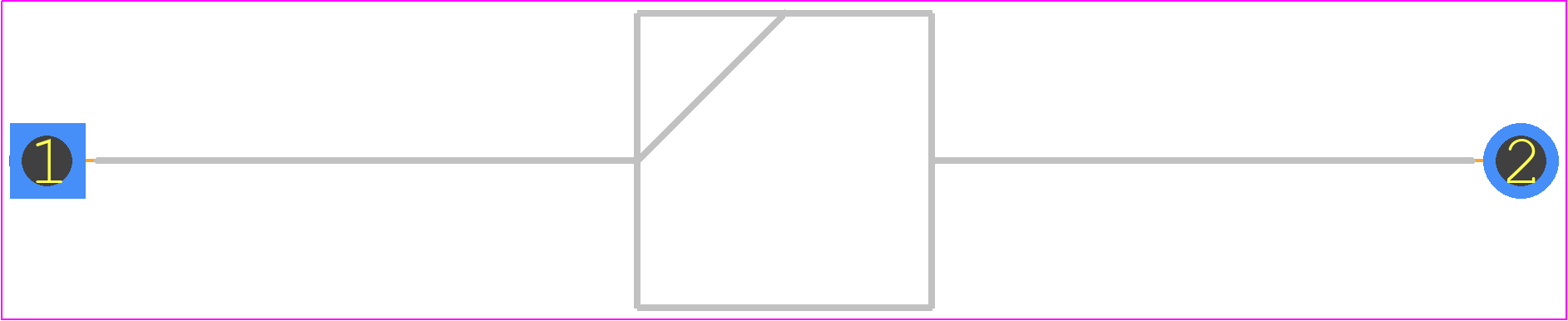

10A01-T - Diodes Incorporated PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - R-6
click to zoom
3D Models
10A01-T - Diodes Incorporated  - 3D model - Diodes, Axial Diameter Horizontal Mounting - R-6
click to zoom

10A01-T Details

  • Manufacturer Part Number:

    10A01-T

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, PLASTIC, R-6, 2 PIN

  • Pin Count:

    2

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Application:

    GENERAL PURPOSE

  • Case Connection:

    ISOLATED

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1 V

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Non-rep Pk Forward Current-Max:

    600 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    10 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    50 V

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

10A01-T Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 10A01-T is -40°C to 125°C.
  • To ensure proper biasing, connect the input pin to a voltage source through a resistor, and connect the output pin to a load through a resistor. The recommended bias voltage is 5V.
  • The maximum current rating for the 10A01-T is 10A, as indicated by the part number.
  • Yes, the 10A01-T is suitable for high-frequency applications up to 100 kHz. However, it's essential to consider the device's switching characteristics and ensure proper PCB layout to minimize parasitic inductance and capacitance.
  • To protect the 10A01-T from overvoltage and overcurrent, use a voltage regulator to limit the input voltage, and consider adding overcurrent protection devices such as fuses or current-limiting resistors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10A01-T Overview

Use the download button to access the 10A01-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10A01, or try a keyword search, such as Rectifier Diodes
